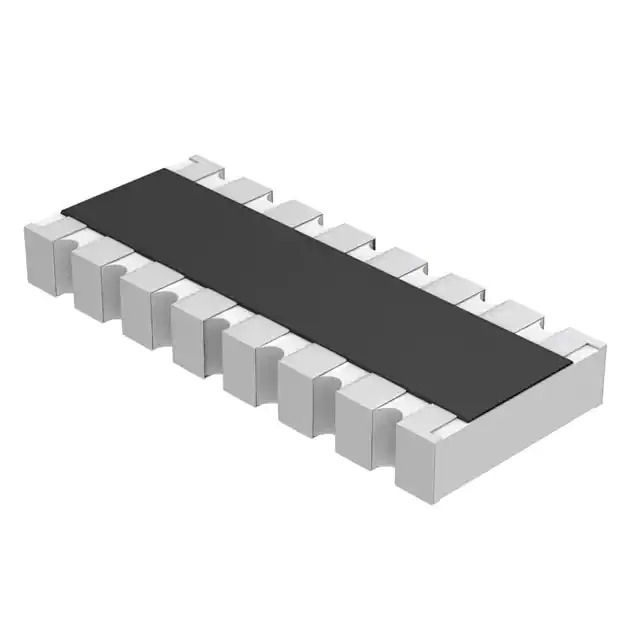

Same model may have multiple batches, images only for reference.
MNR18E0APJ102 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

MNR18E0APJ102

Part No MNR18E0APJ102
Manufacturer Rohm Semiconductor
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 1K OHM 1506 / 1k Ohm ±5% 62.5mW Power Per Element Isolated 8 Resistor Network/Array ±200ppm/°C 1506, Convex, Long Side Terminals
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Rohm Semiconductor
Series MNR
Package Tape & Reel (TR)
Circuit Type Isolated
Resistance (Ohms) 1k
Tolerance ±5%
Number of Resistors 8
Resistor Matching Ratio -
Resistor-Ratio-Drift -
Number of Pins 16
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200
Mounting Type Surface Mount
Package / Case 1506, Convex, Long Side Terminals
Supplier Device Package -
Size / Dimension 0.150" L x 0.063" W (3.80mm x 1.60mm)
Height - Seated (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 1356399-MNR18E0APJ102
Ultra Librarian 3D Model Ultra Librarian MNR18E0APJ102 CAD Model

Description

The MNR18E0APJ102 is a resistor network array manufactured by Rohm Semiconductor.

  • Series: MNR
  • Mounting Type: Surface Mount
  • Package: Tape and Reel (TR)
  • Package Description: 1506, Convex, Long Side Terminals
  • Size: 0.150" L x 0.063" W (3.80mm x 1.60mm)
  • Seated Height: 0.022" (0.55mm)
  • Resistance: 1k ohms
  • Number of Resistors: 8
  • Number of Pins: 16
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Circuit Type: Isolated
  • Standard: Automotive AEC-Q200
  • Power Per Element: 62.5mW
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Operating Temperature: -55°C to 125°C
