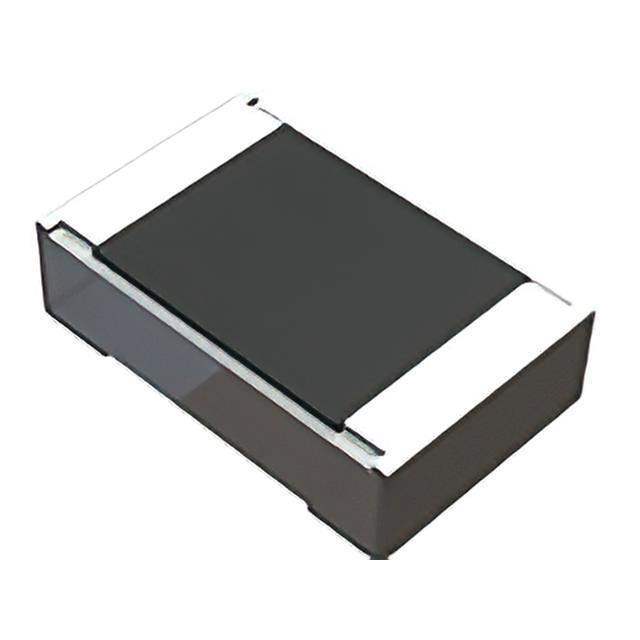

Same model may have multiple batches, images only for reference.
ESR18EZPF5R60 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

ESR18EZPF5R60

Part No ESR18EZPF5R60
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES 5.6 OHM 1% 3/4W 1206
Datasheet
ESR18EZPF5R60 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1211302-ESR18EZPF5R60
Manufacturer Rohm Semiconductor
Category Resistors -Chip Resistor - Surface Mount
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Resistance (Ohms) 5.6 Ohms
Tolerance (+ or -) ±1%
Power (Watts) 0.75W, 3/4W
Composition Thick Film
Features Automotive AEC-Q200, Pulse Withstanding
Package / Case 1206 (3216 Metric)
Ultra Librarian 3D Model Ultra Librarian ESR18EZPF5R60 CAD Model

Description

Features
1) Exclusive resistive element pattern and laser trimming technology results in significantly improved surge resistance characteristics.
2) 2kV to 5kV electrostatic discharge resistance.
3) Superior power ratings.
4) ROHM resistors have obtained ISO9001 / IATF16949 certification.
5) Corresponds to AEC-Q200.
