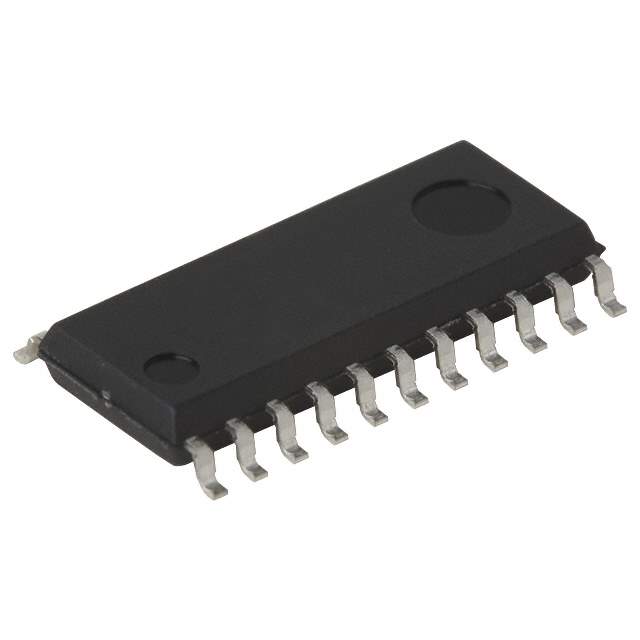

BH1417F-E2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Not For New Designs
Frequency 76MHz to 90MHz, 87.5MHz to 108MHz
Applications Wireless Audio Link LSI
Modulation or Protocol FM
Power - Output -7dBm
Current - Transmitting 20mA
Data Interface PCB, Surface Mount
Antenna Connector PCB, Surface Mount
Supply Voltage - Operating 4 V to 6 V
Temperature Range - Operating -40°C to 85°C
Dimension 22-SOIC (0.213", 5.40mm Width)
Win Source Part Number 011553-BH1417F-E2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BH1417F-E2 CAD Model

Description

BH1417F-E2 Product Description

The BH1417F-E2 FM stereo transmitter IC is a robust solution for high-quality audio transmission. Its design integrates advanced features aimed at providing exceptional broadcast capacity for modern audio applications.

  • Applications:
    • High-fidelity FM transmitters
    • Multi-device audio systems
    • Innovative audio broadcasting projects
  • Features and Benefits:
    • Impressive signal clarity owing to advanced PLL circuitry.
    • Low harmonic distortion for superior sound output.
    • Efficient design reduces power consumption while maintaining performance.
  • Additional Details:
    • Package Type: SOP-22
    • Compatible with a range of antennas for versatile application.
    • Supply Voltage: 3V to 3.6V
