Same model may have multiple batches, images only for reference.

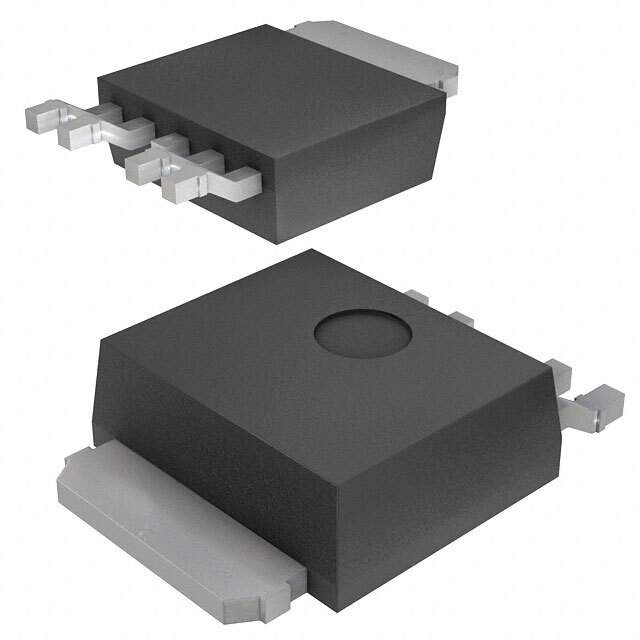

BA07CC0WFP-E2 Real Image
Same model may have multiple batches, images only for reference.

BA07CC0WFP-E2

Part No BA07CC0WFP-E2
Manufacturer Rohm Semiconductor
Catalog PMIC - Voltage Regulators - Linear
Description 2A/1A Fixed OutputLDORegulators With ShutdownSwicth
Datasheet
BA07CC0WFP-E2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 25V
Output Voltage 7V
Output Current 1A
Operating Supply Current 2.5mA ~ 5mA
PSRR 55dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Over Voltage
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package TO-252-5, DPak (4 Leads + Tab), TO-252AD
Manufacturer Package TO-252-5
Win Source Part Number 1150989-BA07CC0WFP-E2
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Balance
Family Name BA07CC0
Introduction Date April 14, 2005
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian BA07CC0WFP-E2 CAD Model

Description

The BA07CC0WFP-E2 is a fixed output voltage regulator from Rohm Semiconductor.

  • Designed for use in: integrated circuits (ICs)
  • Output voltage: 7V
  • Output current: 1A
  • Output configuration: positive
  • Controlled by: an enable feature
  • Package: TO-252-5, DPak (4 Leads + Tab), TO-252AD
  • Mounted using: surface mount technology
  • Voltage input MAX: 25V
  • PSRR: 55dB (120Hz)
  • Designed with: over current, over temperature, and over voltage protection features
  • Temperature range: -40°C ~ 125°C
  • Rated at: EAR99
  • Estimated EOL date: 2024
  • Also known as: R1501S069B-E2-FE, R1500J072B-T1-FE, and R1500J069B-T1-FE
