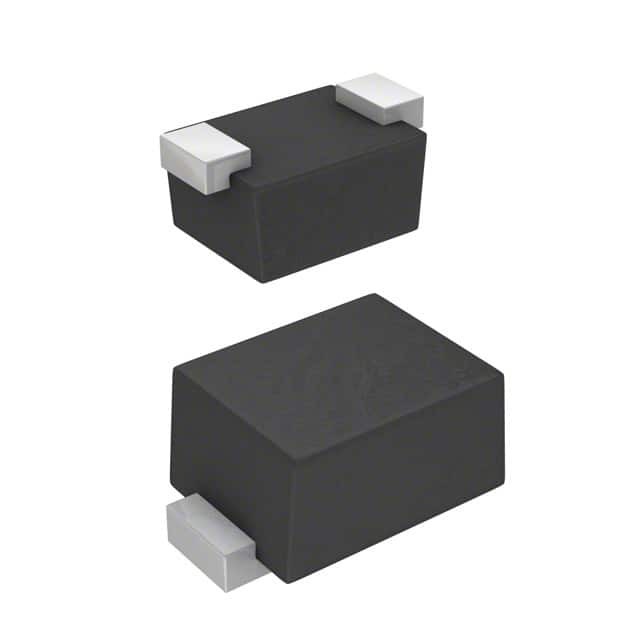

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features Diode Schottky 30 V 30mA Surface Mount 2-EFP
Manufacturer Renesas Electronics America
Package Bulk
Part Status Obsolete
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Surface Mount
Package 2-SMD, Flat Lead
Case / Package 2-EFP
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number 2156-HSL278KRF-E, 2156-HSL278KRF-E-RETR-ND
Quantity per package 10000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873921-HSL278KRF-E
Ultra Librarian 3D Model Ultra Librarian HSL278KRF-E CAD Model

Description

The Schottky diode from Renesas Electronics America is a small signal diode with a maximum voltage of 30V and maximum current of 30mA.

  • Maximum Voltage: 30V
  • Maximum Current: 30mA
  • Mounting: Surface mountable
  • Package: 2-SMD, flat lead package
  • Category: Discrete Semiconductor Products
  • ECCN: EAR99
  • Supply and demand status: Limited
  • Package Size: 10000
