Same model may have multiple batches, images only for reference.

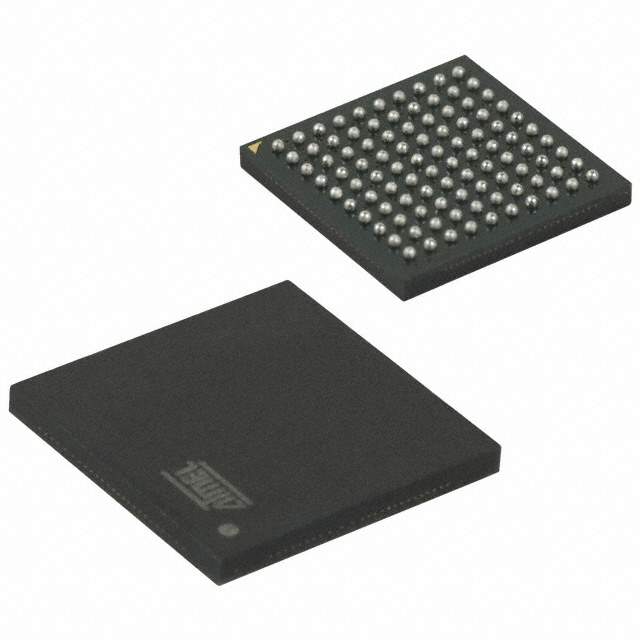

ATSAM4SA16CA-CU Real Image
Same model may have multiple batches, images only for reference.

ATSAM4SA16CA-CU

Part No ATSAM4SA16CA-CU
Manufacturer Rochester Electronics
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 1MB FLASH 100TFBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features ARM® Cortex®-M4 series Microcontroller IC 32-Bit 120MHz 1MB (1M x 8) FLASH 100-TFBGA (9x9)
Manufacturer Atmel
Series SAM4S
Package Bulk
Core Processor ARM® Cortex®-M4
Core Size 32-Bit
Speed 120MHz
Connectivity EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Number of I/O 79
Program Memory Size 1MB (1M x 8)
Program Memory Type FLASH
Supply Voltage 1.62V ~ 3.6V
Data Converters A/D 16x12b; D/A 2x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 100-TFBGA
Case / Package 100-TFBGA (9x9)
Quantity per package 1
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 862457-ATSAM4SA16CA-CU
Ultra Librarian 3D Model Ultra Librarian ATSAM4SA16CA-CU CAD Model

Description

The Atmel SAM4S microcontroller is a high-performance 32-bit ARM Cortex-M4 based microcontroller that operates at a speed of 120MHz.

  • Core: ARM Cortex-M4
  • Speed: 120MHz
  • Program Memory Size: 1MB (1M x 8) FLASH
  • Supply Voltage: 1.62V to 3.6V
  • Connectivity: EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, and USB
  • Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, and WDT
  • Number of I/O Pins: 79
  • Data Converters: A/D 16x12b and D/A 2x12b
  • Package: 100-TFBGA
