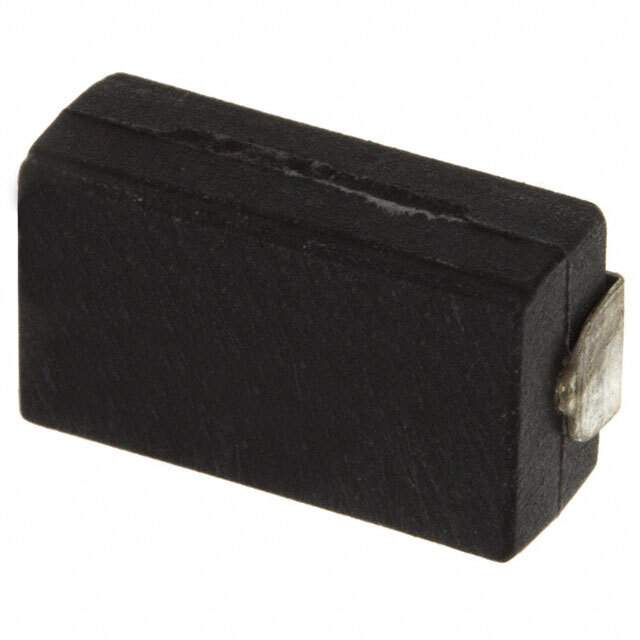

S4-681RF1 Real Image
Same model may have multiple batches, images only for reference.

S4-681RF1

Part No S4-681RF1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 681 OHM 1% 2W 4525 / 681 Ohms ±1% 2W Chip Resistor 4525 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S4-681RF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 681 Ohms
Tolerance ±1%
Power (Watts) 2W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 4525 J-Lead
Dimension 0.449" L x 0.252" W (11.40mm x 6.40mm)
Height - Seated (Max) 0.197" (5.00mm)
Number of Terminations 2
Other Names S-4-681FTR,S-4-681FTR
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237154-S4-681RF1
Ultra Librarian 3D Model Ultra Librarian S4-681RF1 CAD Model

Description

The S series resistor by Riedon is designed for tape & reel (TR) packaging.

  • Packaging: Tape & Reel (TR)
  • Composition: Wirewound
  • Resistance: 681 Ohms
  • Applications: Current Sensing, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
  • Power Rating: 2W
  • Package: 4525 J-Lead
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
  • Height: 0.197"
  • Size: 0.449" L x 0.252" W
  • Operating Temperature: -55°C to 275°C
