Same model may have multiple batches, images only for reference.

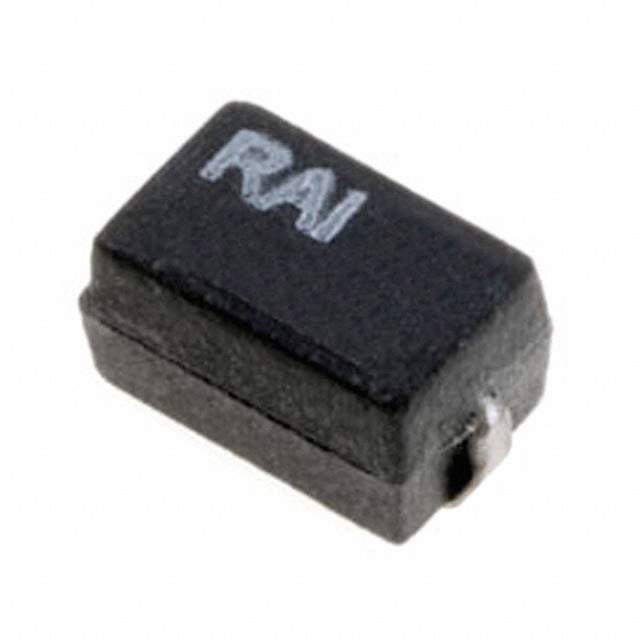

S1-0R24J8 Real Image
Same model may have multiple batches, images only for reference.

S1-0R24J8

Part No S1-0R24J8
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES 0.24 OHM 5% 1/2W 1913 / 240 mOhms ±5% 0.5W, 1/2W Chip Resistor 1913 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S1-0R24J8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 240 mOhms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Range - Operating -55°C ~ 275°C
Package / Case 1913 J-Lead
Dimension 0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max) 0.126" (3.20mm)
Number of Terminations 2
Other Names S-1 0.240 OHM 5%,S-1-0.240JTR,S-1-0.240JTR
Standard Package 650
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237178-S1-0R24J8
Ultra Librarian 3D Model Ultra Librarian S1-0R24J8 CAD Model

Description

The S series wirewound chip resistor is a high-quality current sensing resistor that is flame-proof, moisture-resistant, pulse-withstanding, and safe.

  • Features: Current Sensing, Flame-proof, Moisture-resistant, Pulse-withstanding, and Safe
  • Packaging: Tape & Reel
  • Height: 0.126" (3.20mm)
  • Standard Package: 650
  • Tolerance: ±5%
  • Temperature Range: -55°C to 275°C
  • Power Rating: 0.5W (1/2W)
  • Package/Case: 1913 J-Lead
  • Terminations: 2
  • Resistance: 240 mOhms
  • Device Package: Not Specified
  • ECCN: EAR99
  • REACH: Affected
  • HTSUS Code: 8533.21.0080
  • Manufacturer: Riedon
