Same model may have multiple batches, images only for reference.

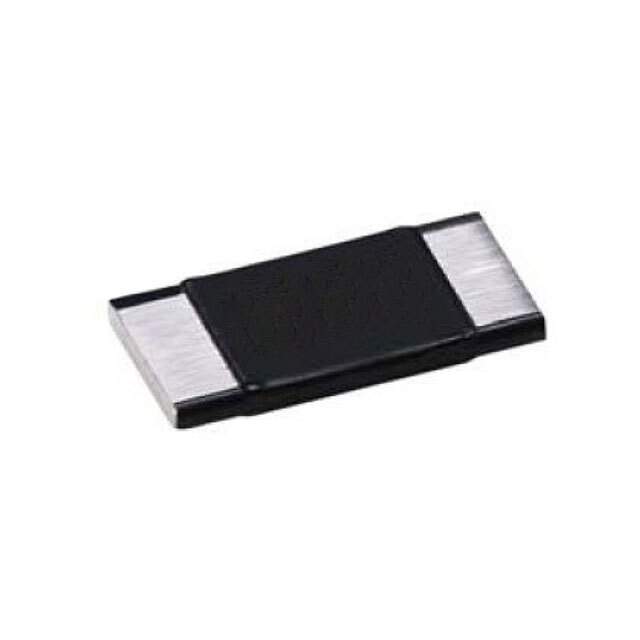

CSRL1-0R003F1 Real Image
Same model may have multiple batches, images only for reference.

CSRL1-0R003F1

Part No CSRL1-0R003F1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RESISTOR / 3 mOhms ±1% 1W Chip Resistor 1206 (3216 Metric) Current Sense, Non-Inductive Metal Element
Datasheet
CSRL1-0R003F1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Riedon
Series CSRL
Package Bulk
Resistance 3 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Element
Features Current Sense, Non-Inductive
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.122" L x 0.063" W (3.10mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1337649-CSRL1-0R003F1
Ultra Librarian 3D Model Ultra Librarian CSRL1-0R003F1 CAD Model

Description

The 1337649-CSRL1-0R003F1 resistor is a surface mount chip resistor from Riedon's CSRL series.

  • Resistance: 3 mOhms
  • Power Rating: 1W
  • Material: Metal Element
  • Tolerance: ±1%
  • Inductance: Non-Inductive
  • Packaging: Bulk
  • Package/Case: 1206 (3216 Metric)
  • Terminations: 2
  • Temperature Coefficient: ±75ppm/°C
  • Operating Temperature: -55°C to 170°C
  • Dimensions: 0.122" L x 0.063" W (3.10mm x 1.60mm)
  • REACH: Not Affected
  • ECCN: EAR99
