The R5106N291A-TR-F is a high-accuracy voltage detector IC manufactured by Ricoh. This IC is designed to monitor voltage levels in electronic circuits and provide a reset signal when the voltage falls below a predefined threshold. It is commonly used in a wide variety of applications where stable and reliable power supply monitoring is essential.

Applications

• Microcontroller reset circuits: Ensuring proper initialization of microcontrollers after a power interruption.
• Power supply monitoring: Detecting undervoltage conditions in power supplies and triggering appropriate responses.
• Battery-powered devices: Monitoring battery voltage and preventing deep discharge.
• System power management: Controlling power sequencing and preventing system malfunctions due to voltage drops.
• Industrial control systems: Monitoring critical voltage levels to ensure safe and reliable operation.

Features

• High-accuracy detection voltage: Provides precise voltage monitoring with a typical accuracy of ±1%.
• Low supply current: Minimizes power consumption, making it suitable for battery-powered applications.
• Small package size: Available in compact packages like SOT-23, allowing for space-saving designs.
• Built-in hysteresis: Prevents chattering or oscillations around the threshold voltage.
• Open-drain output: Offers flexibility in connecting to various logic circuits.
• Wide operating temperature range: Ensures reliable performance in a variety of environments.

Benefits

• Improved system reliability: Prevents malfunctions caused by undervoltage conditions.
• Extended battery life: Low power consumption minimizes drain on battery-powered devices.
• Simplified circuit design: Integrated features reduce the need for external components.
• Enhanced system safety: Protects sensitive components from damage due to voltage fluctuations.
• Accurate voltage monitoring: Ensures precise and reliable voltage level detection.

Additional Details

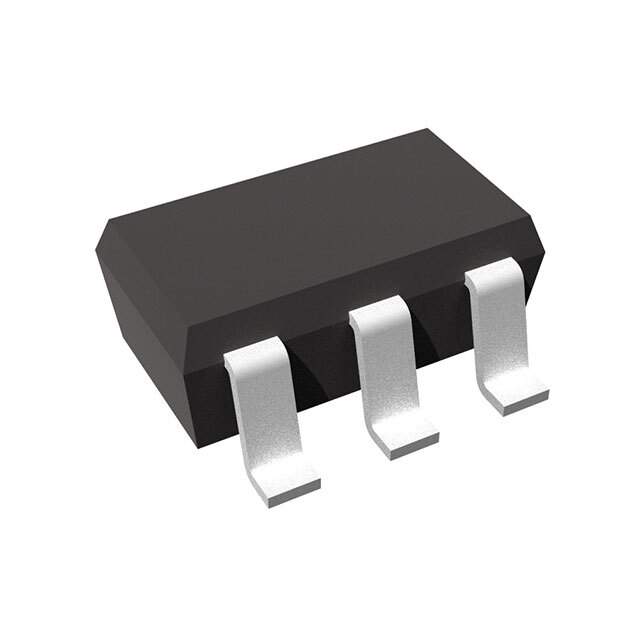

The R5106N291A-TR-F has a typical detection voltage of 2.9V. The output is an N-channel open drain, which means an external pull-up resistor is required. The operating temperature range is typically -40°C to +85°C. The package is SOT-23. It's also important to note that the "-TR-F" suffix typically denotes tape and reel packaging for automated assembly, and lead-free compliance.
