Same model may have multiple batches, images only for reference.

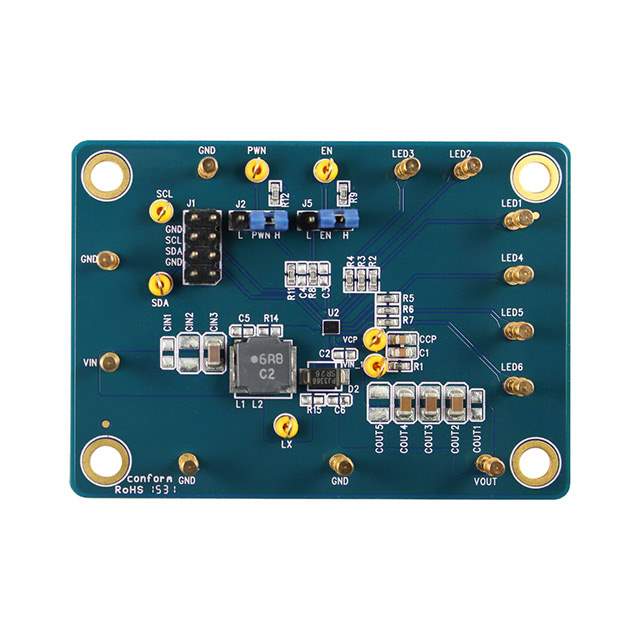

EVB_RT8555WSC Real Image
Same model may have multiple batches, images only for reference.

EVB_RT8555WSC

Part No EVB_RT8555WSC
Manufacturer Richtek USA Inc.
Catalog Board Mount LED Drivers
Description EVAL MODULE FOR RT8555WSC
Datasheet
EVB_RT8555WSC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Richtek USA Inc.
Output Current per Channel 20mA
Outputs and Type 6, Non-Isolated
Voltage - Output 36V
Features Dimmable, I2C Interface
Voltage - Input 2.7 V ~ 24 V
Supplied Contents Board(s)
Utilized IC / Part RT8555
Win Source Part Number 793435-EVB_RT8555WSC
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Ultra Librarian 3D Model Ultra Librarian EVB_RT8555WSC CAD Model

Description

The Richtek USA Inc. EVB_RT8555WSC is a development board for the RT8555 LED driver.

  • Includes: RT8555 IC
  • Interface: I2C, dimmable
  • Outputs: 6, non-isolated
  • Output Current per Channel: 20mA
  • Voltage Input Range: 2.7 V to 24 V
  • Output Voltage: 36V
  • Supply and Demand: Limited
  • Quantity Per Package: Single
