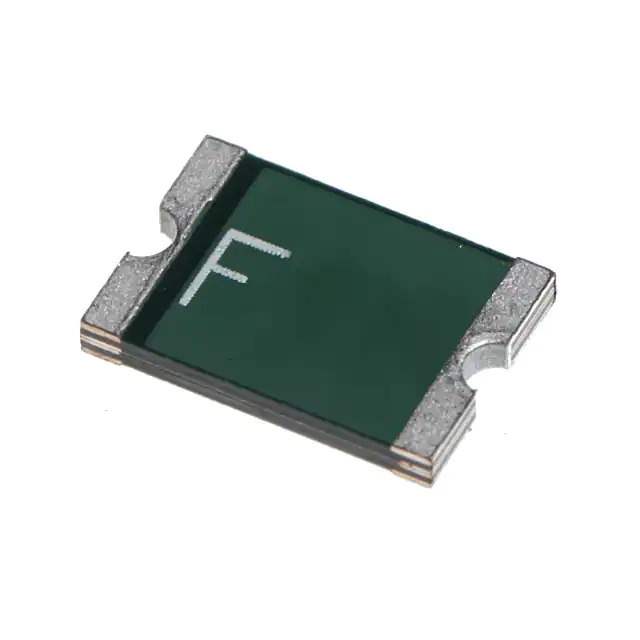

Same model may have multiple batches, images only for reference.

FSMD125-2920-R

Name: FSMD125-2920-R
Brand: RFE/Fuzetec
SKU: 133500
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FSMD125-2920-R
Manufacturer	RFE/Fuzetec
Catalog	PTC Resettable Fuses
Description	RESETTABLE FUSE - SMD, 2920 SIZE
Datasheet	FSMD125-2920-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	RFE/Fuzetec
Series	FSMD2920
Package	Tape & Reel
Product Status	Active
Voltage - Max	33V
Current - Hold (Ih) (Max)	1.25 A
Current - Trip (It)	2.5 A
Current - Max	100 A
Time to Trip	2 s
Resistance - Initial (Ri) (Min)	50 mOhms
Resistance - Post Trip (R1) (Max)	250 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	2920 (7351 Metric), Concave
Size / Dimension	0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max)	0.035" (0.90mm)
Approval Agency	cUL, TUV, UL
Standard Package	50 pcs
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	133500-FSMD125-2920-R
Ultra Librarian 3D Model	Ultra Librarian FSMD125-2920-R CAD Model

Alternative Products

Description

The FSMD2920 is a circuit protection PTC resettable fuse from RFE/Fuzetec.

Mounting: Surface Mount
Package: Tape & Reel
Dimensions: 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness: 0.035" (0.90mm)
Voltage Rating: 33V
Maximum Current Rating: 100 A
Hold Current: 1.25 A
Trip Current: 2.5 A
Time to Trip: 2 seconds
Resistance (initial): 50 mOhms
Resistance (post-trip): 250 mOhms
Operating Temperature: -40°C to 85°C
Approvals: cUL, TUV, and UL
