Same model may have multiple batches, images only for reference.

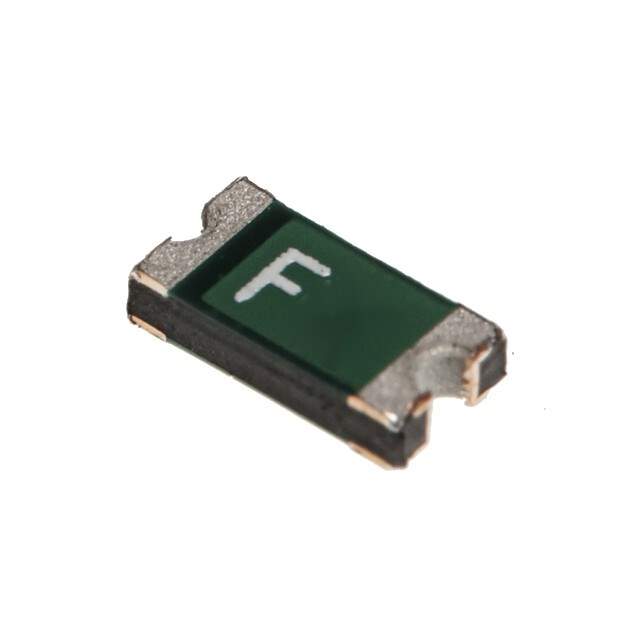

FSMD035-30-1206R Real Image
Same model may have multiple batches, images only for reference.

FSMD035-30-1206R

Part No FSMD035-30-1206R
Manufacturer RFE/Fuzetec
Catalog PTC Resettable Fuses
Description RESETTABLE FUSE - SMD, 1206 SIZE / PTC Resettable Fuse 30V 350 mA Ih Surface Mount 1206 (3216 Metric), Concave
Datasheet
FSMD035-30-1206R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr RFE/Fuzetec
Series FSMD1206
Package Tape & Reel (TR)
Voltage - Max 30V
Current - Max 100 A
Current - Hold (Ih) (Max) 350 mA
Current - Trip (It) 750 mA
Time to Trip 100 ms
Resistance - Initial (Ri) (Min) 300 mOhms
Resistance - Post Trip (R1) (Max) 1.2 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Concave
Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.051" (1.30mm)
Approval Agency cUL, TUV, UL
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names 3451-FSMD035-30-1206RTR
Standard Package 50
Win Source Part Number 1151059-FSMD035-30-1206R
Ultra Librarian 3D Model Ultra Librarian FSMD035-30-1206R CAD Model

Description

The FSMD1206 series PTC resettable fuse by RFE/Fuzetec is a reliable circuit protection component.

  • Series: FSMD1206
  • Type: PTC Resettable Fuse
  • Packaging: Tape and Reel
  • Maximum Voltage: 30V
  • Hold Current: 350 mA
  • Trip Current: 750 mA
  • Time to Trip: 100 ms
  • Initial Resistance: 300 mOhms
  • Post-Trip Resistance: 1.2 Ohms
  • Mounting Type: SMD (SMT)
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.128" L x 0.065" W (3.25mm x 1.65mm)
  • Package/Case: Concave 1206 (3216 Metric)
  • Approvals: cUL, TUV, and UL
