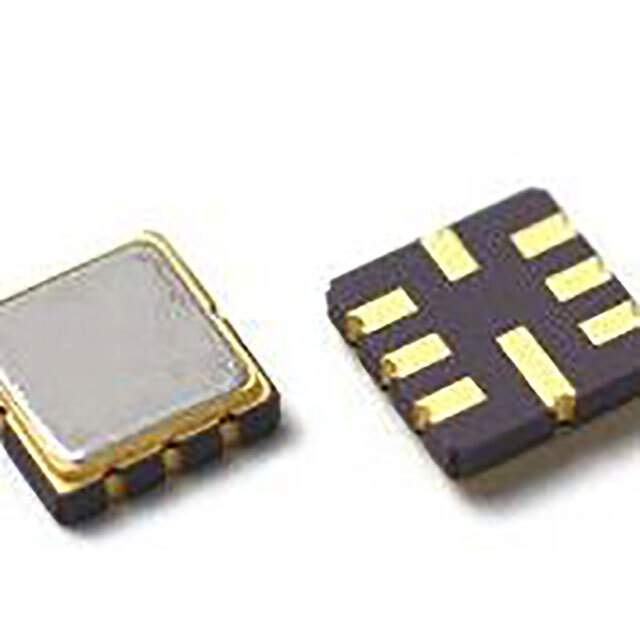

Same model may have multiple batches, images only for reference.

SF2249E

Name: SF2249E
Brand: RF Monolithics, Inc
SKU: 1275863
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SF2249E
Manufacturer	RF Monolithics, Inc
Catalog	SAW Filters
Datasheet	SF2249E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>SAW Filters
Mfr	RFMi
Package	Tape & Reel (TR),Tape & Reel (TR),Bag
Frequency - Center	1.602GHz
Bandwidth	61MHz
Insertion Loss	3dB
Ratings	AEC-Q200
Applications	General Purpose
Mounting	SMD (SMT)
Package / Case	8-SMD, No Lead
Height (Max)	0.043" (1.10mm)
Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Base Product Number	SF2249
Other Names	2410-SF2249ETR,2410-SF2249ETR2,2410-SF2249E
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.60.0060
Win Source Part Number	1275863-SF2249E
Ultra Librarian 3D Model	Ultra Librarian SF2249E CAD Model

Description

The SF2249E is a SAW filter that is designed for general-purpose use.

Bandwidth: 61MHz
Frequency Center: 1.602GHz
Insertion Loss: 3dB
Height: 0.043" (1.10mm)
Rated: AEC-Q200 compliant
Temperature Range: -40°C to 85°C
Packaging: tape & reel packaging
Package/Case: 8-SMD, no lead
Applications: automotive, industrial, and consumer electronics
