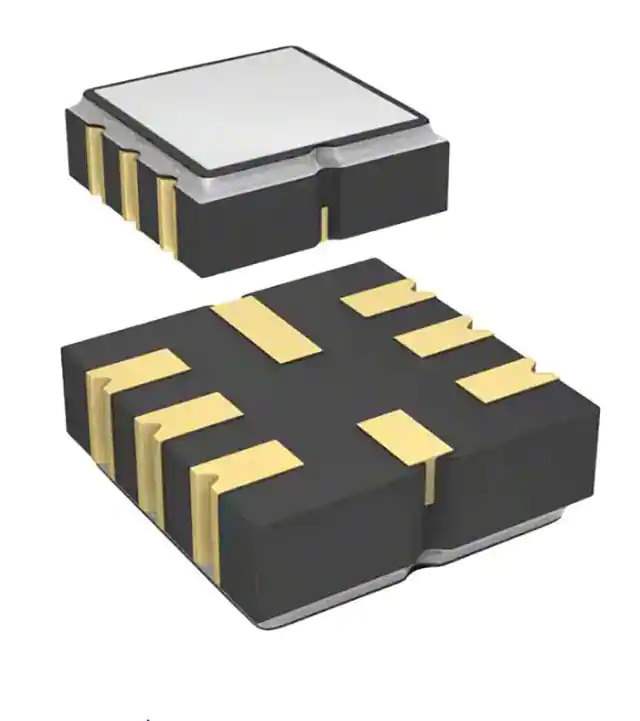

Same model may have multiple batches, images only for reference.

RF3171D

Name: RF3171D
Brand: RF Monolithics, Inc
SKU: 659892
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RF3171D
Manufacturer	RF Monolithics, Inc
Catalog	SAW Filters
Description	CRF,SM,418.000 MHZ
Datasheet	RF3171D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - SAW Filters
Mfr	RF Monolithics, Inc
Package	Tape & Reel (TR)Tape & Reel (TR)Bag
Product Status	Active
Frequency - Center	418MHz
Bandwidth	620kHz
Insertion Loss	1.6dB
Ratings	AEC-Q200
Applications	Wireless
Mounting Type	Surface Mount
Package / Case	8-SMD, No Lead
Height (Max)	0.055" (1.40mm)
Size / Dimension	0.150" L x 0.150" W (3.80mm x 3.80mm)
Base Product Number	RF3171
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.60.0060
Win Source Part Number	659892-RF3171D
Ultra Librarian 3D Model	Ultra Librarian RF3171D CAD Model

Description

The RF3171D is a compact SAW filter designed for wireless applications, and is manufactured by RF Monolithics, Inc.

Size: 0.150" L x 0.150" W (3.80mm x 3.80mm)
Insertion Loss: 1.6dB
Center Frequency: 418MHz
Bandwidth: 620kHz
Mounting Type: Surface Mount
Package: 8-SMD, no lead
Packaging: Tape & reel (3,000 pieces)
AEC-Q200: Rated
Height: 0.055" (1.40mm)
Series: RF3171
Market Status: Active
