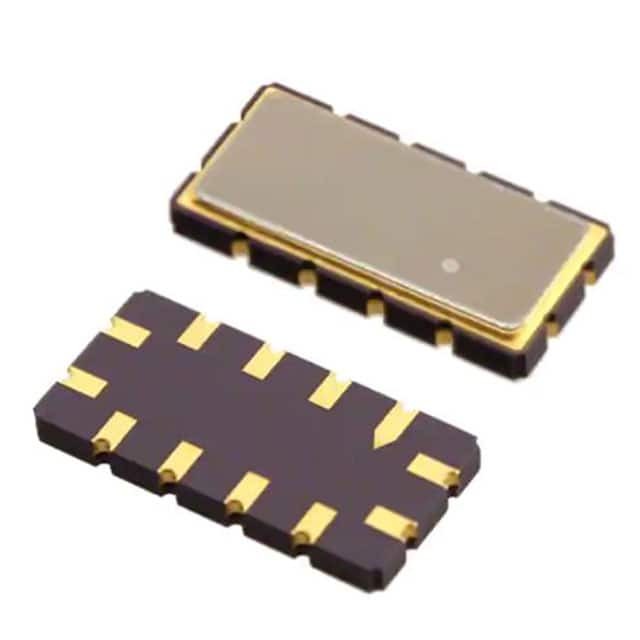

Same model may have multiple batches, images only for reference.
PX1004-1
Same model may have multiple batches, images only for reference.

PX1004-1

Part No PX1004-1
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Description FILTER,PX,82.200 MHZ / 82.2MHz Frequency General Purpose RF SAW Filter (Surface Acoustic Wave) 3dB 84kHz Bandwidth 12-SMD, No Lead
Datasheet
PX1004-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - SAW Filters
Mfr RF Monolithics, Inc
Package Tape & Reel (TR)Tape & Reel (TR)Bag
Product Status Active
Frequency - Center 82.2MHz
Bandwidth 84kHz
Insertion Loss 3dB
Applications General Purpose
Mounting Type Surface Mount
Package / Case 12-SMD, No Lead
Height (Max) 0.079" (2.00mm)
Size / Dimension 0.524" L x 0.256" W (13.31mm x 6.50mm)
Base Product Number PX1004
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 931124-PX1004-1
Ultra Librarian 3D Model Ultra Librarian PX1004-1 CAD Model

Description

The 931124-PX1004-1 is a SAW (Surface Acoustic Wave) filter designed for general-purpose applications.

  • Size: 0.524" L x 0.256" W (13.31mm x 6.50mm)
  • Height: 0.079" (2.00mm)
  • Center Frequency: 82.2MHz
  • Bandwidth: 84kHz
  • Insertion Loss: 3dB
  • Mounting Type: Surface Mountable
  • Package: 12-SMD, no lead
  • ECCN: EAR99
  • Standard Package: 3,000 pcs
  • Manufacturer: RF Monolithics, Inc
  • Product Status: Active
