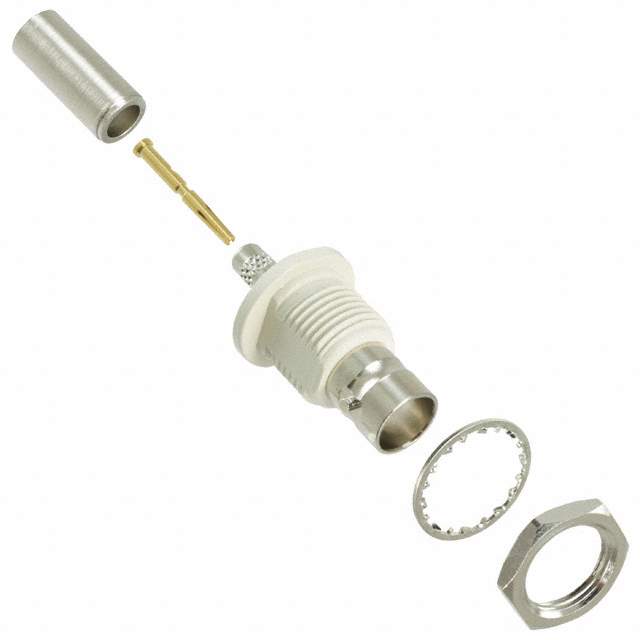

RF2119 Real Image
Same model may have multiple batches, images only for reference.

RF2119

Part No RF2119
Manufacturer RF Micro Devices
Catalog Coaxial Connectors (RF)
Description CONN MINI BNC JCK STR 75 OHM
Datasheet
RF2119 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Bulk
Status Obsolete(EOL)
Connector Style BNC, Mini
Connector Type Jack, Female Socket
Contact Termination Crimp
Shield Termination Crimp
Impedance 75 Ohm
Mounting Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Cable Group AT&T 735, 735A, Belden 735A1
Fastening Type Bayonet Lock
Housing Color Silver
Includes 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Center Contact Material Beryllium Copper
Mating Cycles 500
Insertion Loss 0.1dB
Win Source Part Number 293277-RF2119
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF2119 CAD Model

Description

The Amphenol RF Division RF2119 is a BNC mini jack, female socket connector suitable for various applications.

  • Materials: Brass, beryllium copper, and PTFE
  • Mounting Feature: Bulkhead-front side nut
  • Panel Mounting: Can be easily panel-mounted.
  • Insertion Loss: 0.1dB
  • Maximum Input Frequency: - Hz
  • Package Contents: Includes five pieces of one connector, one contact, one ferrule, one lockwasher, and one nut.
