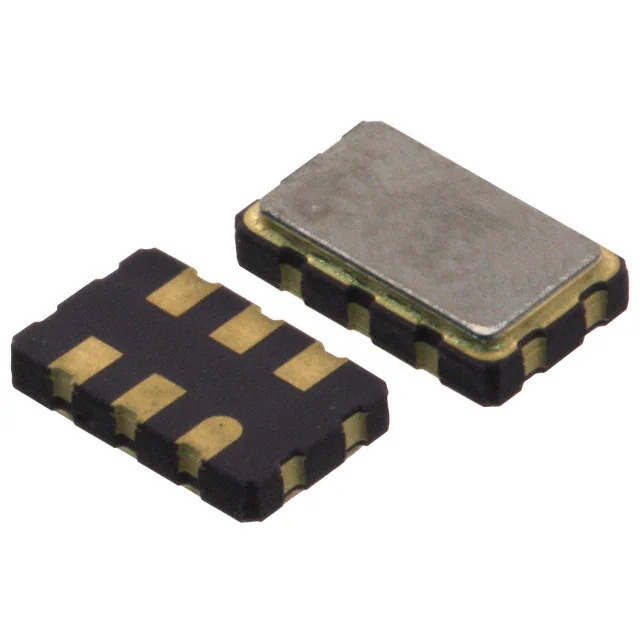

Same model may have multiple batches, images only for reference.
XLH536010.000000I Renesas Electronics America
Same model may have multiple batches, images only for reference.

XLH536010.000000I

Part No XLH536010.000000I
Manufacturer Renesas Electronics America
Catalog Oscillators
Description XTAL OSC XO 10.0000MHZ HCMOS SMD
Datasheet
XLH536010.000000I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Renesas Electronics America Inc
Series XPRESSO™ FXO-HC53
Package Strip
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 10 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 32mA
Ratings -
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.203" L x 0.132" W (5.15mm x 3.35mm)
Height - Seated (Max) 0.055" (1.40mm)
Current - Supply (Disable) (Max) -
Base Product Number XLH536
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366437-XLH536010.000000I
Ultra Librarian 3D Model Ultra Librarian XLH536010.000000I CAD Model

Description

The XLH536010.000000I is a crystal oscillator from Renesas Electronics America Inc.

  • Series: XPRESSO™ FXO-HC53
  • Mounting Type: Surface Mount
  • Frequency: 10 MHz
  • Voltage Supply: 3.3V
  • Current Supply: Up to 32mA
  • Output: HCMOS
  • Frequency Stability: ±25ppm
  • Size: 0.203" L x 0.132" W (5.15mm x 3.35mm)
