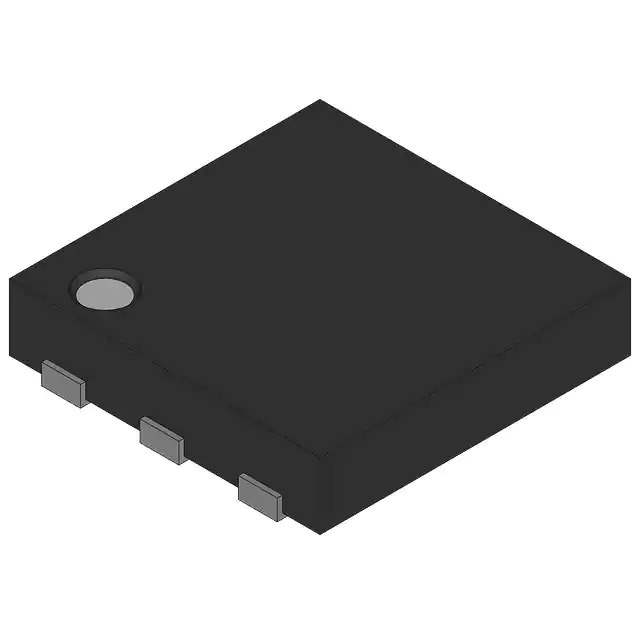

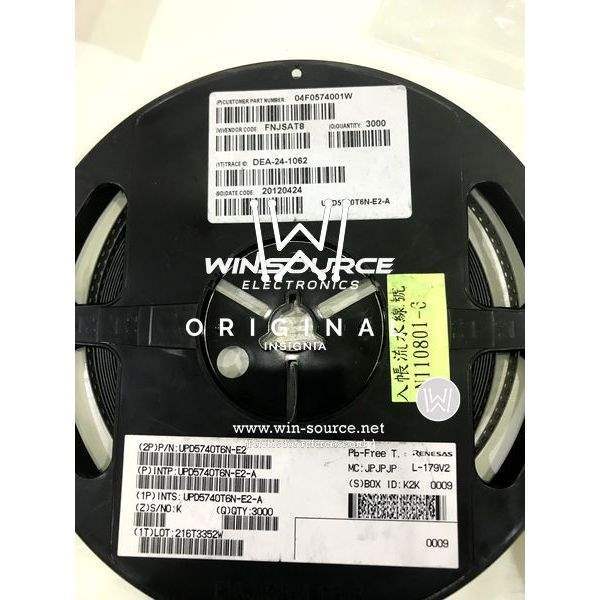

UPD5740T6N-E2-A Renesas Electronics America UPD5740T6N-E2-A Real Image UPD5740T6N-E2-A label picture
Same model may have multiple batches, images only for reference.
UPD5740T6N-E2-A Renesas Electronics America UPD5740T6N-E2-A Real Image UPD5740T6N-E2-A label picture
UPD5740T6N-E2-A Renesas Electronics America UPD5740T6N-E2-A Real Image UPD5740T6N-E2-A label picture
Same model may have multiple batches, images only for reference.

UPD5740T6N-E2-A

Part No UPD5740T6N-E2-A
Manufacturer Renesas Electronics America
Catalog RF Amplifiers
Description IC AMP GPS 470MHZ-770MHZ 6TSON
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Renesas Electronics America
Package Bulk
Product Status Obsolete
Frequency 470MHz ~ 770MHz
P1dB -5.5dBm
Gain 15dB
Noise Figure 1.5dB
RF Type General Purpose
Voltage - Supply 2.3V ~ 3.3V
Current - Supply 5mA
Test Frequency 470MHz
Mounting Type Surface Mount
Package / Case 6-XFDFN Exposed Pad
Supplier Device Package 6-TSON
Standard Package 3,000 pcs
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 392512-UPD5740T6N-E2-A
Ultra Librarian 3D Model Ultra Librarian UPD5740T6N-E2-A CAD Model

Description

The UPD5740T6N-E2-A is a RF Amplifier designed for general purpose applications.

  • Frequency Range: 470MHz to 770MHz
  • Gain: 15dB
  • Noise Figure: 1.5dB
  • Supply Current: 5mA
  • Supply Voltage: 2.3V to 3.3V
  • Mounting: Surface mountable
  • Package: 6-XFDFN Exposed Pad
  • Suitability: Ideal choice for RF and wireless applications.
