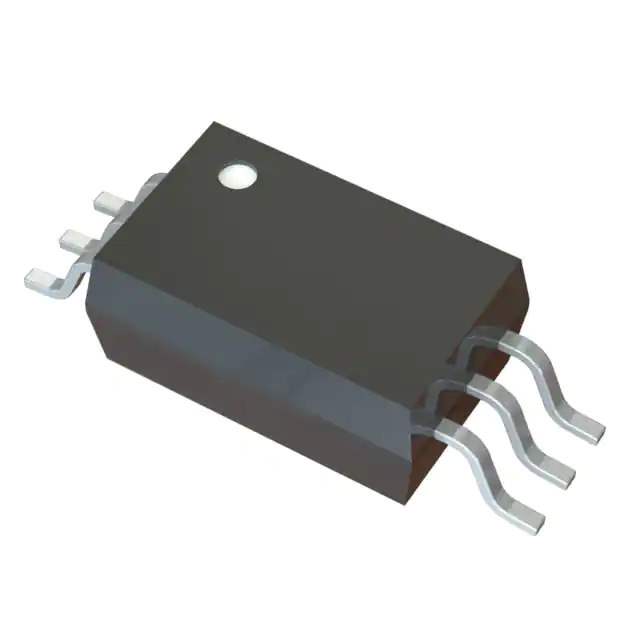

PS9324L-AX Real Image
Same model may have multiple batches, images only for reference.

PS9324L-AX

Part No PS9324L-AX
Manufacturer Renesas Electronics America
Catalog Optoisolators - Logic Output
Description SDIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Logic Output Optoisolators
Mfr Renesas Electronics America
Package Tape & Reel
Product Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 15kV/µs
Input Type DC
Output Type Open Collector
Current - Output / Channel 25 mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise / Fall Time (Typ) 20ns, 5ns
Voltage - Forward (Vf) (Typ) 1.55V
Current - DC Forward (If) (Max) 25mA
Voltage - Supply 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Surface Mount
Package / Case 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package 6-SDIP
Base Product Number PS9324
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 657218-PS9324L-AX
Ultra Librarian 3D Model Ultra Librarian PS9324L-AX CAD Model

Description

The PS9324L-AX is an optoisolator with logic output from Renesas Electronics America.

  • Category: isolators - optoisolators - logic output
  • Mounting Type: surface mount
  • Package: 6-SOIC
  • Output Type: open collector
  • Data Rate: 10Mbps
  • Input Type: DC
  • Maximum Forward Current: 25mA
  • Forward Voltage: 1.55V
  • Rise/Fall Time: 20ns / 5ns
  • Current Output: 25mA
  • Voltage Isolation: 5000Vrms
  • Channels: 1
  • Inputs (Side 1): 1
  • Inputs (Side 2): 0
  • Common Mode Transient Immunity: 15kV/μs
  • Propagation Delay tpLH/tpHL: 75ns
  • Operating Temperature: -40°C to 110°C
  • Voltage Supply: 2.7V to 5.5V
