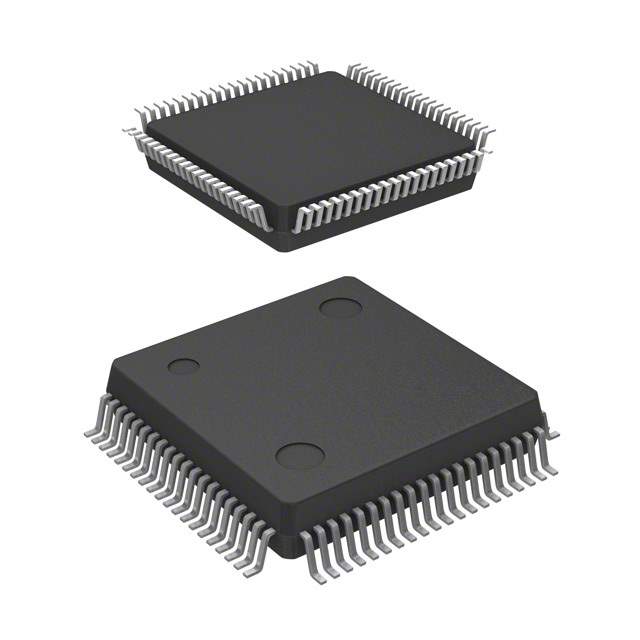

DF36049GHV Real Image
Same model may have multiple batches, images only for reference.

DF36049GHV

Part No DF36049GHV
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 96KB FLASH 80QFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Renesas Electronics America
Series H8 H8/300H Tiny
Packaging Tray
Core Processor H8/300H
Core Size 16-Bit
Speed 20MHz
Connectivity I2C, SCI
Peripherals LVD, POR, PWM, WDT
Number of I/O 59
Program Memory Size 96KB (96K x 8)
Program Memory Type FLASH
RAM Size 4K x 8
Supply Voltage 3 V ~ 5.5 V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature Range -20°C ~ 75°C (TA)
Package 80-BQFP
Manufacturer Package 80-QFP (14x14)
Manufacturer Homepage www.renesas.com
Win Source Part Number 752894-DF36049GHV
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name DF36049G
Introduction Date March 07, 2006
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian DF36049GHV CAD Model

Description

The DF36049GHV from Renesas Electronics America is a part of the H8 H8/300H Tiny series.

  • Package: 80-BQFP
  • Operating Temperature Range: -20°C ~ 75°C (TA)
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Core Processor: H8/300H
  • Speed: 20MHz
  • Connectivity: I2C, SCI
  • Peripherals: LVD, POR, PWM, WDT
  • Program Memory Size: 96KB (96K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 4K x 8
  • Data Converter: A/D 8x10b
  • Oscillator Type: Internal
  • Supply Voltage: 3 V ~ 5.5 V
  • Win Source Part Number: 752894

You can visit the manufacturer's homepage @ www.renesas.com to learn more about this product.
