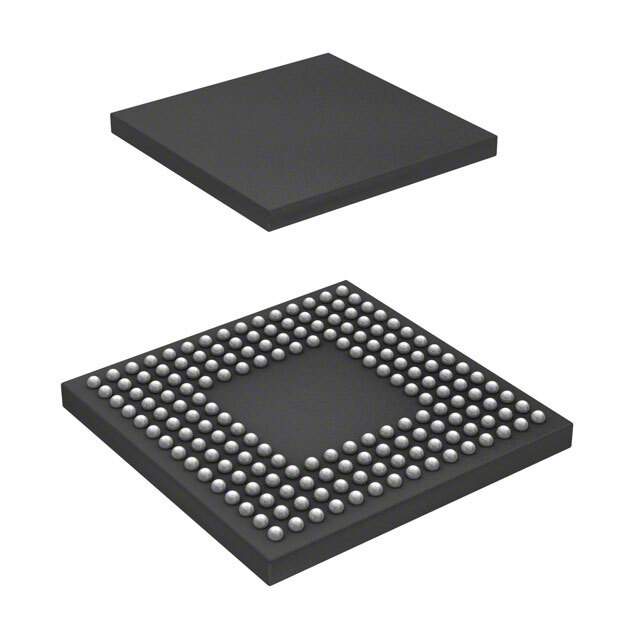

DF2117VBG20V Real Image
Same model may have multiple batches, images only for reference.

DF2117VBG20V

Part No DF2117VBG20V
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 160KB FLASH 176BGA / MCU 16-bit H8S/2600 CISC 160KB Flash 3.3V 176-Pin LFBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Renesas Electronics America
Series H8 H8S/2100
Packaging Tray
Core Processor H8S/2600
Core Size 16-Bit
Speed 20MHz
Connectivity FIFO, I2C, LPC, SCI, SmartCard
Peripherals POR, PWM, WDT
Number of I/O 128
Program Memory Size 160KB (160K x 8)
Program Memory Type FLASH
RAM Size 8K x 8
Supply Voltage 3 V ~ 3.6 V
Data Converters A/D 16x10b
Oscillator Type External
Operating Temperature Range -20°C ~ 75°C (TA)
Package 176-LFBGA
Manufacturer Package 176-LFBGA (13x13)
Win Source Part Number 772577-DF2117VBG20V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 152
Family Name DF2117VBG
Introduction Date February 18, 2008
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian DF2117VBG20V CAD Model

Description

The DF2117VBG20V is a microcontroller from Renesas Electronics America.

  • Series: H8 H8S/2100
  • Core Processor: 16-bit
  • Speed: 20MHz
  • I/O Ports: 128
  • Program Memory Size: 160KB (160K x 8)
  • RAM Size: 8K x 8
  • Data Converters: A/D 16x10b
  • Oscillator Type: External
  • Supplier Package: 176-LFBGA
  • Operating Temperature: -20°C to 75°C
  • Supply and Demand Status: Limited
