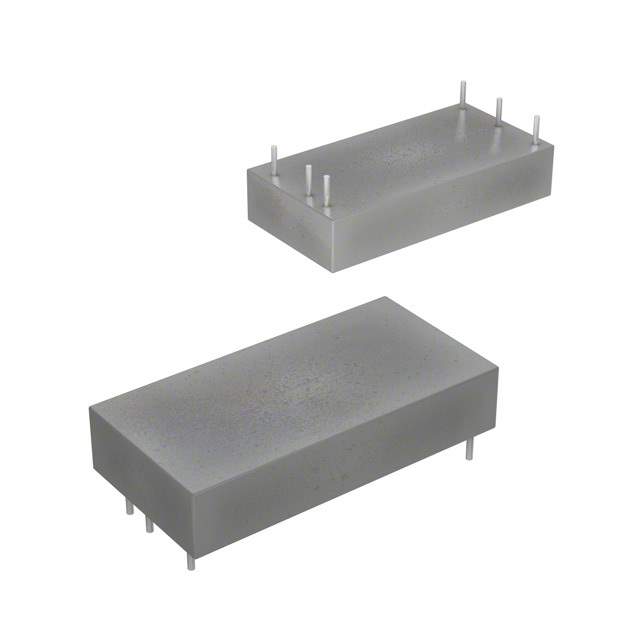

Same model may have multiple batches, images only for reference.

RP20-2405SFW

Name: RP20-2405SFW
Brand: Recom Power
SKU: 1227419
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RP20-2405SFW
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 20W / Isolated Module DC DC Converter 1 Output 5V 4A 9V - 36V Input
Datasheet	RP20-2405SFW Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Recom Power
Series	POWERLINE RP20-FW (20W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	4A
Power (Watts)	20 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 63°C
Efficiency	86%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Control Features	Enable, Active High
Base Product Number	RP20-2405
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	RP20-2405SFW-ND,945-2382-5,30000872,RP202405SFW
Standard Package	9
Win Source Part Number	1227419-RP20-2405SFW
Ultra Librarian 3D Model	Ultra Librarian RP20-2405SFW CAD Model

Description

The RP20-2405SFW is a DC-DC converter designed for use in a variety of electronic applications and is manufactured by .

Series: POWERLINE RP20-FW (20W)
Type: Isolated Module
Features: Remote On/Off, OCP, OVP, and SCP
Packaging: Tube
Standard Package: 9
Power Rating: 20 W
Voltage Isolation: 1.6 kV
Output Count: 1
Current Output: 4A
Voltage Input Range: 9V to 36V
Voltage Output: 5V
Efficiency: 86%
Mounting Type: Through Hole
Package: 6-DIP Module
Temperature Range: -40°C to 63°C
ROHS: Compliant
