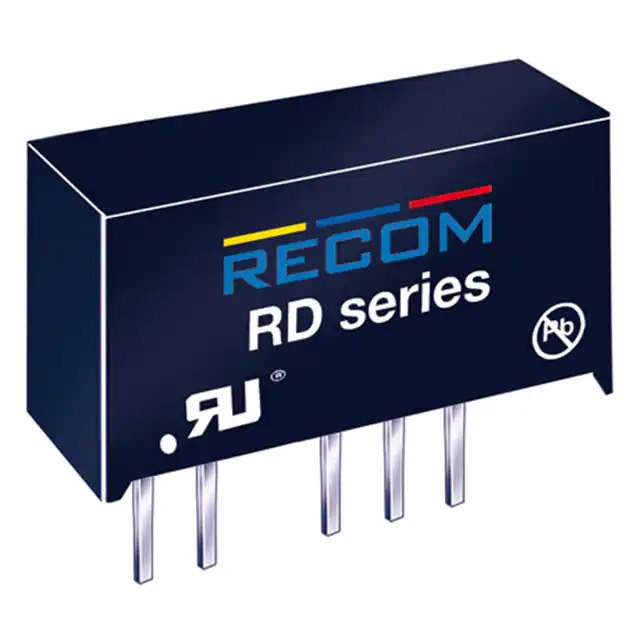

RD-0512D Real Image
Same model may have multiple batches, images only for reference.

RD-0512D

Part No RD-0512D
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 84mA, 84mA 4.5V - 5.5V Input
Datasheet
RD-0512D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Recom Power
Series ECONOLINE RD (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 84mA, 84mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 84%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Base Product Number RD-0512
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 847872-RD-0512D
Ultra Librarian 3D Model Ultra Librarian RD-0512D CAD Model

Description

The RD-0512D is a 2W isolated module DC-DC converter from the ECONOLINE RD series from Recom Power.

  • Voltage Isolation: 1 kV.
  • Outputs: Two outputs, with a maximum output current of 84mA for each.
  • Input Voltage Range: From 4.5V to 5.5V.
  • Output Voltages: 12V and -12V.
  • Size: 0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm).
  • Mounting: Through-hole.
  • Applications: ITE (Commercial) devices.
  • Efficiency: 84%.
  • Standard Package: 25 pcs.
  • Protection: SCP (Short Circuit Protection).
  • Product Status: Active.
  • Compliance: California Prop 65.
