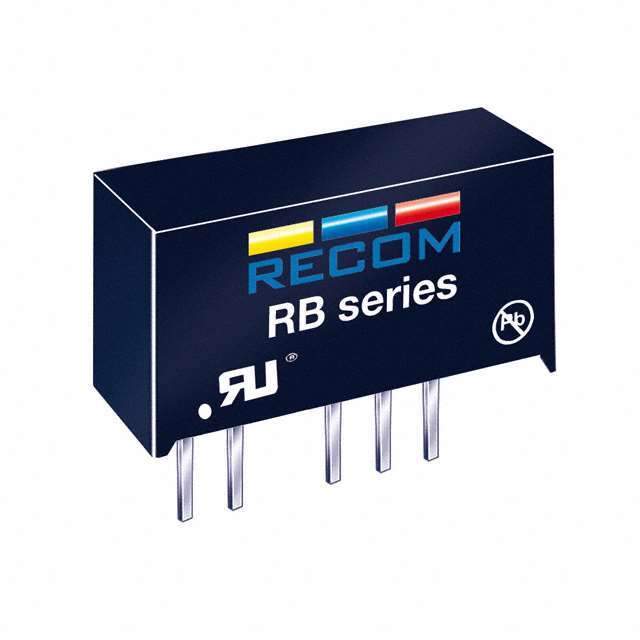

RB-1212D Real Image
Same model may have multiple batches, images only for reference.

RB-1212D

Part No RB-1212D
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W / Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 10.8V - 13.2V Input
Datasheet
RB-1212D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Recom Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Through Hole
Case / Package 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
Base Product Number RB-1212
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number Q5583947,RB1212D,945-1110,10000118
Standard Package 25
Win Source Part Number 1320584-RB-1212D
Ultra Librarian 3D Model Ultra Librarian RB-1212D CAD Model

Description

The RB-1212D is a 1W isolated module from the ECONOLINE RB series of DC-DC converters.

  • Series: ECONOLINE RB
  • Application: power supplies in commercial applications
  • Package: 7-SIP package with 5 leads
  • Mounting Type: through-hole
  • Output Voltages: 12V and -12V
  • Input Voltage: 10.8V to 13.2V
  • Voltage Isolation: 1 kV
  • Short Circuit Protection: No
  • Operating Temperature: -40°C to 85°C
  • Efficiency: 82%
  • Packaging: tube
  • Standard Package: 25 units
  • Alternative Parts: Q5583947, RB1212D, 945-1110, and 10000118
  • ROHS3 Compliant: Yes
  • REACH: unaffected
