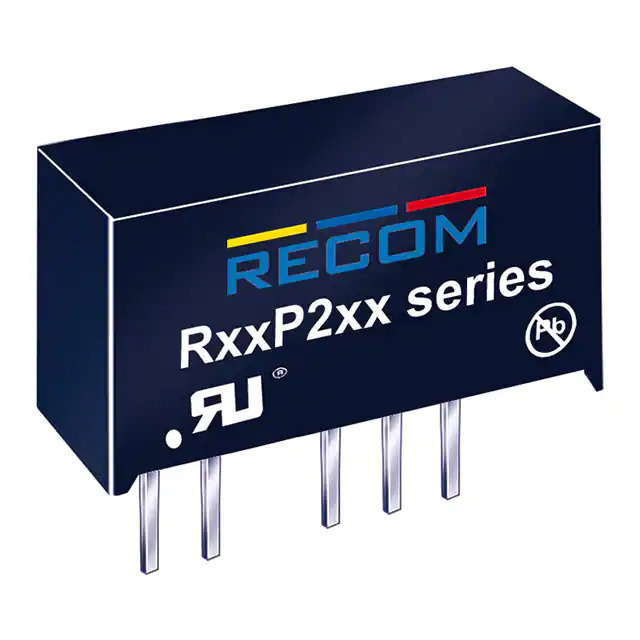

Same model may have multiple batches, images only for reference.

R05P215D

Name: R05P215D
Brand: Recom Power
SKU: 1379556
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	R05P215D
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 2W
Datasheet	R05P215D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RxxP2xx (2W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Voltage - Output 3	-
Current - Output (Max)	66mA, 66mA
Power (Watts)	2 W
Voltage - Isolation	6.4 kV
Applications	ITE (Commercial), Medical
Features	-
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	80%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.39" W x 0.49" H (19.7mm x 9.8mm x 12.5mm)
Supplier Device Package	-
Base Product Number	R05P215
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1379556-R05P215D
Ultra Librarian 3D Model	Ultra Librarian R05P215D CAD Model

Alternative Products

Description

The R05P215D is a 2W isolated module DC-DC converter from Recom Power.

Mounting Type: Through Hole
Package / Case: 7-SIP Module, 5 Leads
Operating Temperature: -40°C ~ 85°C
Applications: ITE (Commercial), Medical
Number of Outputs: 2
Voltage - Input (Min): 4.5V
Voltage - Input (Max): 5.5V
Voltage - Output 1: 15V
Voltage - Output 2: -15V
Voltage - Isolation: 6.4 kV
Efficiency: 80%
