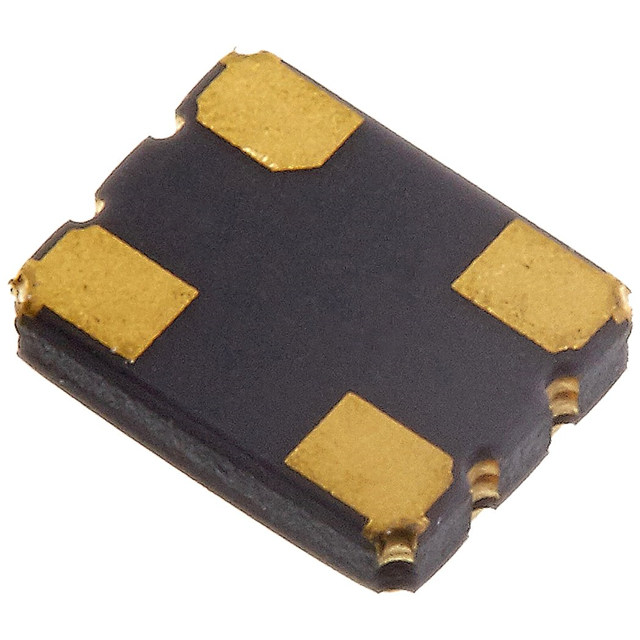

RTXE-104ED333-C-12.800-TR Real Image
Same model may have multiple batches, images only for reference.

RTXE-104ED333-C-12.800-TR

Part No RTXE-104ED333-C-12.800-TR
Manufacturer Raltron Electronics Corporation
Catalog Oscillators
Description XTAL OSC TCXO 12.8MHZ 3.3V HCMOS / 12.8 MHz TCXO HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
RTXE-104ED333-C-12.800-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Raltron Electronics
Series RTXE-104
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 12.8 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±2.5ppm
Absolute Pull Range (APR) ±1ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 4.8mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 1340510-RTXE-104ED333-C-12.800-TR
Ultra Librarian 3D Model Ultra Librarian RTXE-104ED333-C-12.800-TR CAD Model

Description

The Raltron Electronics RTXE-104ED333-C-12.800-TR is a surface mount, tape and reel packaged TCXO oscillator.

  • Type: TCXO
  • Frequency: 12.8 MHz
  • Output: HCMOS
  • Frequency Stability: ±2.5ppm
  • Current - Supply: 4.8mA
  • Enable Function: Enable/Disable
  • Mounting Type: Surface Mount
  • Package / Case: 4-SMD, No Lead
  • Operating Temperature: -40°C to 85°C
  • Absolute Pull Range (APR): ±1ppm
  • Package: Tape & Reel (TR)
