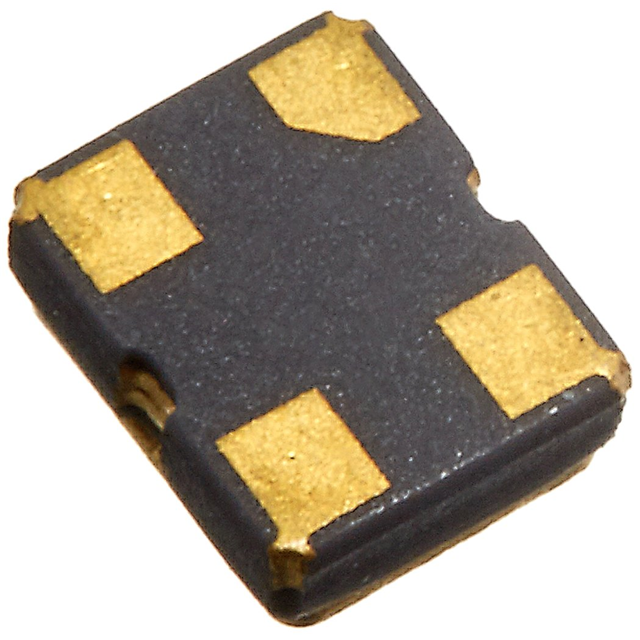

RTX-2520BHZC-S-50.000-TR Real Image
Same model may have multiple batches, images only for reference.

RTX-2520BHZC-S-50.000-TR

Part No RTX-2520BHZC-S-50.000-TR
Manufacturer Raltron Electronics Corporation
Catalog Oscillators
Description XTAL OSC TCXO 50MHZ CLP SNW / 50 MHz TCXO Clipped Sine Wave Oscillator 1.8V ~ 3.6V 4-SMD, No Lead
Datasheet
RTX-2520BHZC-S-50.000-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Raltron Electronics
Series RTX-2520
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 50 MHz
Output Clipped Sine Wave
Voltage - Supply 1.8V ~ 3.6V
Frequency Stability ±1ppm
Absolute Pull Range (APR) ±1ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 2.5mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 1339169-RTX-2520BHZC-S-50.000-TR
Ultra Librarian 3D Model Ultra Librarian RTX-2520BHZC-S-50.000-TR CAD Model

Description

The RTX-2520 series TCXO oscillator is a high-precision oscillator that is perfect for use in a wide range of applications and is manufactured by Raltron Electronics.

  • Frequency: 50 MHz
  • Output: Clipped Sine Wave
  • Frequency Stability: ±1ppm
  • Current Supply: 2.5mA
  • Voltage Supply Range: 1.8V to 3.6V
  • Operating Temperature: -20°C to 70°C
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • Package Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.031" (0.80mm)
  • Absolute Pull Range (APR): ±1ppm
