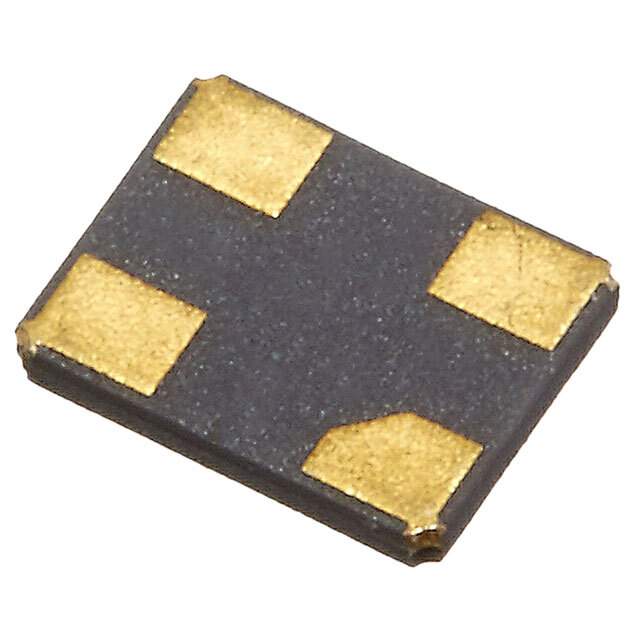

RTX-2016AF3F-S-32.000-TR Real Image
Same model may have multiple batches, images only for reference.

RTX-2016AF3F-S-32.000-TR

Part No RTX-2016AF3F-S-32.000-TR
Manufacturer Raltron Electronics Corporation
Catalog Oscillators
Description XTAL OSC TCXO 32MHZ CLP SNW / 32 MHz TCXO Clipped Sine Wave Oscillator 4-SMD, No Lead
Datasheet
RTX-2016AF3F-S-32.000-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Raltron Electronics
Series RTX-2016
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 32 MHz
Output Clipped Sine Wave
Frequency Stability ±500ppb
Temperature Range - Operating -30°C ~ 85°C
Current - Supply (Max) 2mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.037" (0.95mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2151-RTX-2016AF3F-S-32.000-TRDKR,2151-RTX-2016AF3F-S-32.000-TRCT,2151-RTX-2016AF3F-S-32.000-TR
Standard Package 1,000
Win Source Part Number 1089470-RTX-2016AF3F-S-32.000-TR
Ultra Librarian 3D Model Ultra Librarian RTX-2016AF3F-S-32.000-TR CAD Model

Description

The RTX-2016AF3F-S-32.000-TR is a TCXO oscillator from Raltron Electronics. RTX-2016AF3F-S-32.000-TR manufactured by Raltron Electronics.

  • Frequency: 32 MHz
  • Output: Clipped Sine Wave
  • Frequency Stability: ±500ppb
  • Maximum Supply Current: 2mA
  • Seated Height: 0.037" (0.95mm)
  • Package: 4-SMD, No Lead
  • Operating Temperature: -30°C to 85°C
  • Dimensions: 0.079" L x 0.063" W (2.00mm x 1.60mm)
