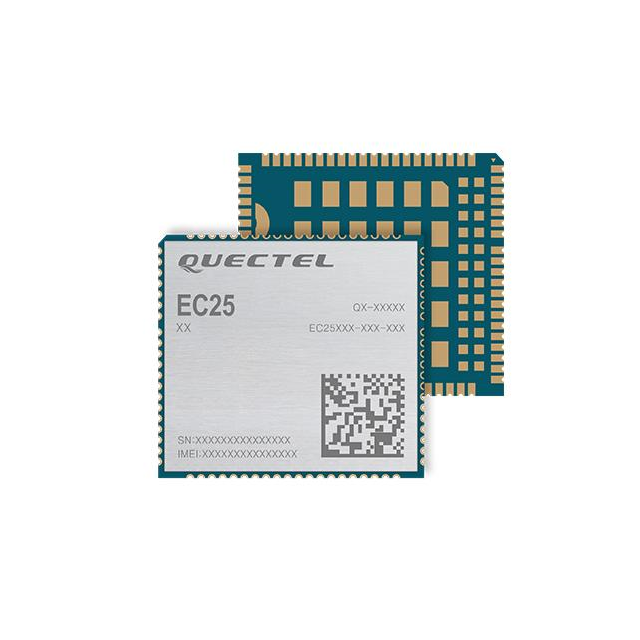

EC25EFA-512-STD Real Image
Same model may have multiple batches, images only for reference.

EC25EFA-512-STD

Part No EC25EFA-512-STD
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD CELL/NAV CARD EDGE / Cellular, Navigation BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, LTE, WCDMA Transceiver Module 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz Antenna Not Included Card Edge
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
RF Family/Standard Cellular, Navigation
Protocol BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, LTE, WCDMA
Modulation 8PSK, 16QAM, 64QAM, GMSK
Frequency 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.8GHz
Data Rate 480Mbps
Power - Output 33dBm
Sensitivity -110.5dBm
Serial Interfaces I²C, PCM, UART, USB
Antenna Type Antenna Not Included
Voltage - Supply 3V ~ 3.6V
Mounting Type Card Edge
Temperature Range - Operating -35°C ~ 75°C
Package / Case Module
Base Product Number EC25
MSL Level 3 (168 Hours)
ECCN 5A992C 22
HTSUS 8517.62.0090
Other Names 2958-EC25EFA-512-STDTR,2958-EC25EFA-512-STDDKR,2958-EC25EFA-512-STDCT
Standard Package 250
Win Source Part Number 1225542-EC25EFA-512-STD
Ultra Librarian 3D Model Ultra Librarian EC25EFA-512-STD CAD Model

Description

The Quectel EC25EFA-512-STD is an RF transceiver module used in RF/IF and RFID applications.

  • Package: Tape and Reel
  • Standard Package Quantity: 250
  • Frequency Range: 900MHz, 1.561GHz, 1.575GHz, 1.602GHz, and 1.8GHz
  • Power Output: 33dBm
  • Sensitivity: -110.5dBm
  • Data Rate: 480Mbps
  • Protocols Supported: BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, LTE, and WCDMA
