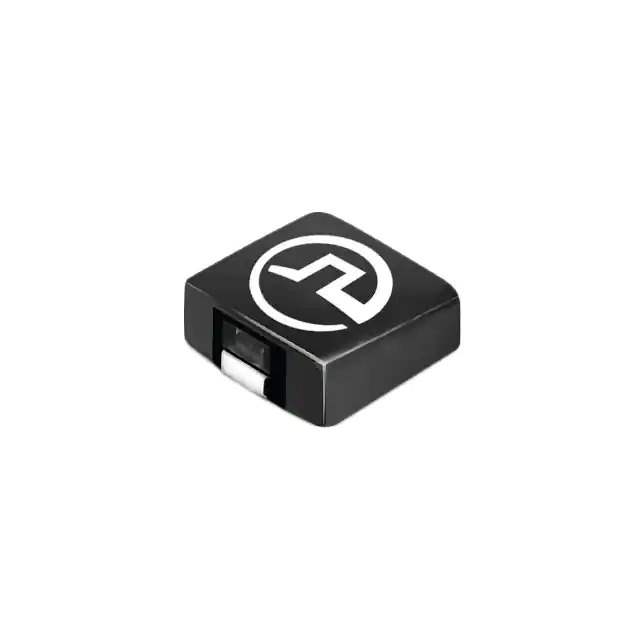

PG0426.102NL

Name: PG0426.102NL
Brand: Pulse
SKU: 654436
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PG0426.102NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 1UH 13A 8 MOHM SMD
Datasheet	PG0426.102NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse
Series	PG0426NL
Package	Tray
Product Status	Active
Type	Wirewound
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	13 A
Current - Saturation (Isat)	22A
Shielding	Shielded
DC Resistance (DCR)	8mOhm Max
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.295" L x 0.276" W (7.50mm x 7.00mm)
Height - Seated (Max)	0.126" (3.20mm)
Standard Package	140 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	654436-PG0426.102NL
Ultra Librarian 3D Model	Ultra Librarian PG0426.102NL CAD Model

Alternative Products

Description

The 654436-PG0426.102NL is a fixed inductor designed for use in inductors, coils, chokes - fixed inductors category. It is part of the PG0426NL series.

Type: Wirewound
Size: 0.295" L x 0.276" W (7.50mm x 7.00mm)
Shielded: Yes
Package: Tray
Inductance: 1μH
Tolerance: ±20%
Maximum Seated Height: 0.126" (3.20mm)
Mounting: Surface mountable
Operating Temperature: -40°C to 130°C
ECCN: EAR99
REACH: Unaffected
Standard Package: 140 pieces
DC Resistance (DCR): 8mΩ max
Current Rating: 13A
Inductance Frequency for Testing: 100kHz
Manufacturer: Pulse
Status: Active
