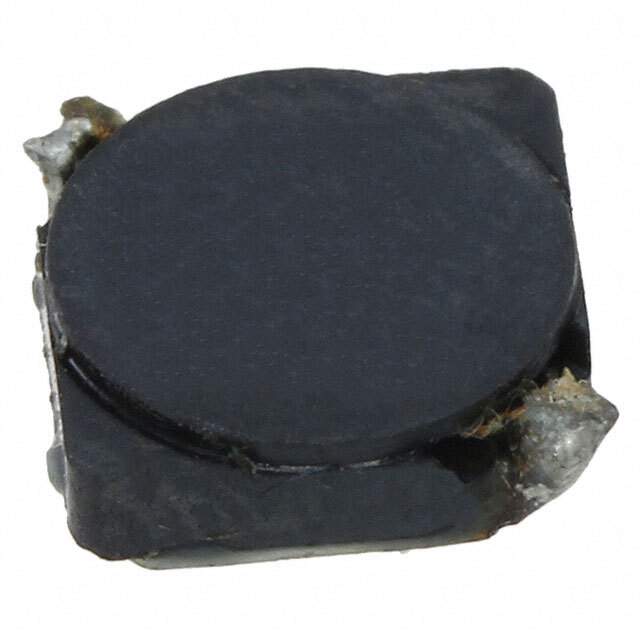

PG0087.682NLT Real Image
Same model may have multiple batches, images only for reference.

PG0087.682NLT

Part No PG0087.682NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 6.8UH 1.5A 105MOHM SMD / 6.8 µH Shielded Inductor 1.5 A 105mOhm Max Nonstandard
Datasheet
PG0087.682NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PG0087NL
Package Tape & Reel (TR)
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 1.5 A
Current - Saturation (Isat) 1.5A
Shielding Shielded
DC Resistance (DCR) 105mOhm Max
Frequency - Self Resonant 37MHz
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.244" L x 0.244" W (6.20mm x 6.20mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 1,500
Win Source Part Number 988459-PG0087.682NLT
Ultra Librarian 3D Model Ultra Librarian PG0087.682NLT CAD Model

Description

This is a fixed inductor from the PG0087NL series manufactured by Pulse.

  • Manufacturer: Pulse
  • Product: PG0087NL
  • Series: PG0087NL
  • Inductance: 6.8 µH
  • Tolerance: ±20%
  • DC Resistance: 105 mOhm max
  • Device Package: Tape and Reel
  • Temperature Range: -40°C to 130°C
  • Dimension: 0.244" L x 0.244" W (6.20mm x 6.20mm)
  • Maximum Seated Height: 0.079" (2.00mm)
  • ECCN: EAR99
  • HTSUS: 8504.50.4000
  • RoHS Compliant: Yes
  • REACH: Unaffected
