Same model may have multiple batches, images only for reference.

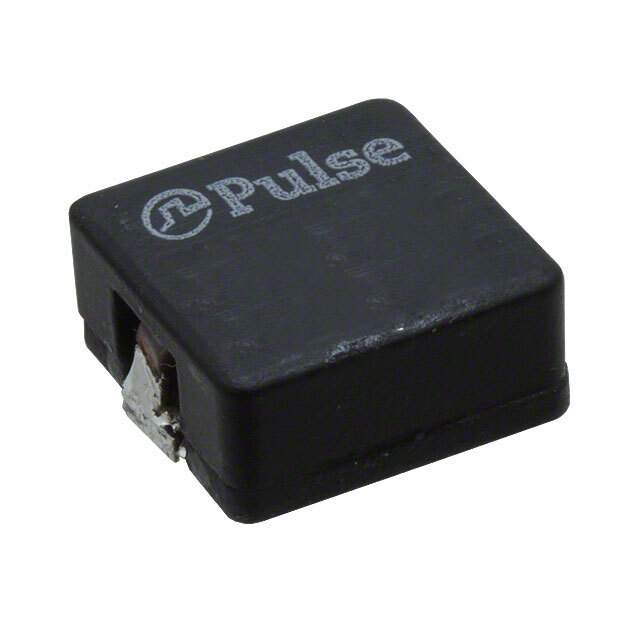

PG0077.801NLT Real Image
Same model may have multiple batches, images only for reference.

PG0077.801NLT

Part No PG0077.801NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 800NH 35A 1.3 MOHM SMD
Datasheet
PG0077.801NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Inductance 800nH
Tolerance ±20%
Current Rating 35A
Current - Saturation 38A
DC Resistance (DCR) 1.3 mOhm Max
Temperature Range - Operating -40°C to 95°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.256" (6.50mm)
Win Source Part Number 133646-PG0077.801NLT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PG0077.801NLT CAD Model

Description

The Pulse Electronics Corporation inductors are a high-quality choice for electronic applications.

  • Popularity Rating: medium
  • Tolerance: ±20%
  • Maximum DC Resistance: 1.3 mOhm
  • Current Rating: 35A
  • Inductance: 800nH
  • Pulse Win Source Part Number: 133646-PG0077.801NLT
