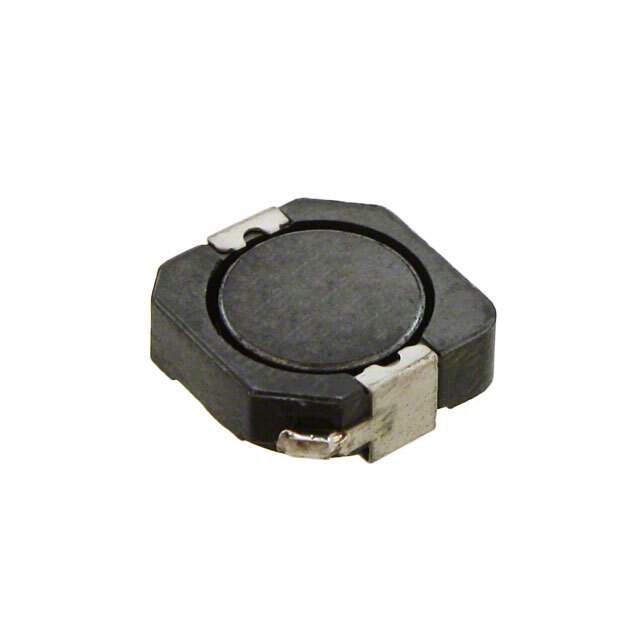

PF0560.382NL

Get a Quote

Part No	PF0560.382NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 3.8UH 5.5A 13 MOHM SMD / 3.8 µH Shielded Wirewound Inductor 5.5 A 13mOhm Max Nonstandard
Datasheet	PF0560.382NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse
Series	PF0560NL
Package	Tray
Type	Wirewound
Material - Core	-
Inductance	3.8 µH
Tolerance	±30%
Current Rating (Amps)	5.5 A
Current - Saturation (Isat)	6A
Shielding	Shielded
DC Resistance (DCR)	13mOhm Max
Q @ Freq	-
Frequency - Self Resonant	39MHz
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.409" L x 0.406" W (10.40mm x 10.30mm)
Height - Seated (Max)	0.157" (4.00mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	90 pcs
Win Source Part Number	1383148-PF0560.382NL
Ultra Librarian 3D Model	Ultra Librarian PF0560.382NL CAD Model

Alternative Products

Description

The PF0560.382NL is a wirewound fixed inductor from the PF0560NL series. It is a shielded inductor with a size of 0.409" L x 0.406" W (10.40mm x 10.30mm).

Manufacturer: Pulse
Series: PF0560NL
Inductance: 3.8 μH
Tolerance: ±30%
DC Resistance (DCR): 13mOhm maximum
Current Rating: 5.5A
Operating Temperature: -40°C to 125°C
Mounting Type: Surface Mount
Package: Nonstandard
Shielding: Shielded
Size: 0.409" L x 0.406" W (10.40mm x 10.30mm)
