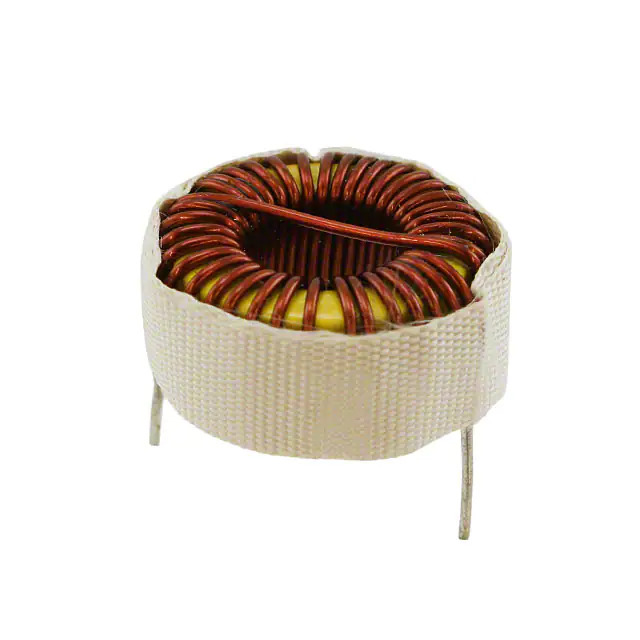

Same model may have multiple batches, images only for reference.

PE-92408NL

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PE-92408NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 67UH 3.6A 45 MOHM TH / 67 µH Unshielded Toroidal Inductor 3.6 A 45mOhm Max Radial, Horizontal (Open)
Datasheet	PE-92408NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse Electronics
Series	-
Package	Tray
Product Status	Active
Type	Toroidal
Material - Core	-
Inductance	67 µH
Tolerance	±20%
Current Rating (Amps)	3.6 A
Current - Saturation (Isat)	-
Shielding	Unshielded
DC Resistance (DCR)	45mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	20 kHz
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Horizontal (Open)
Supplier Device Package	-
Size / Dimension	1.050" Dia (26.67mm)
Height - Seated (Max)	0.550" (13.97mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1356152-PE-92408NL
Ultra Librarian 3D Model	Ultra Librarian PE-92408NL CAD Model

Alternative Products

Description

The PE-92408NL is a toroidal fixed inductor from Pulse Electronics.

Product: Toroidal Fixed Inductor
Manufacturer: Pulse Electronics
Mounting Type: Through Hole
Package: Radial, Horizontal (Open)
Inductance: 67 µH
Tolerance: ±20%
Current Rating: 3.6A
DC Resistance: 45 mOhm Max
Shielding: Unshielded
Size: 1.050" diameter (26.67mm)
Height: 0.550" (13.97mm)
Temperature Range: -40°C to 130°C
