Same model may have multiple batches, images only for reference.

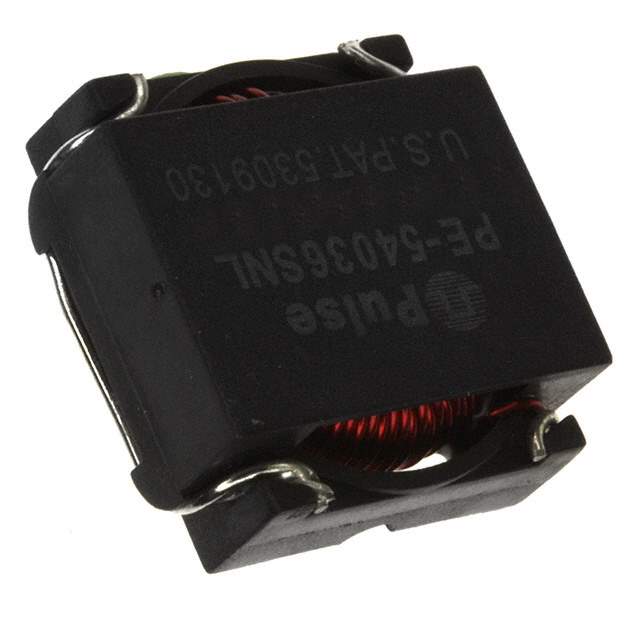

PE-54036SNL Real Image
Same model may have multiple batches, images only for reference.

PE-54036SNL

Part No PE-54036SNL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 168UH 1.81A 180MOHM SM / 168 µH Shielded Toroidal Inductor 1.81 A 180mOhm Nonstandard
Datasheet
PE-54036SNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Pulse Electronics
Packaging Bulk
Type Toroidal
Inductance 168 µH
Tolerance ±20%
Current Rating (Amps) 1.81 A
Shielding Shielded
DC Resistance (DCR) 180mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.940" L x 0.940" W (23.88mm x 23.88mm)
Height - Seated (Max) 0.400" (10.16mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 553-1419,PE54036SNL
Standard Package 20
Win Source Part Number 1327675-PE-54036SNL
Ultra Librarian 3D Model Ultra Librarian PE-54036SNL CAD Model

Description

The PE-54036SNL is an electronic component manufactured by Pulse Electronics.

  • Component Type: Toroidal fixed inductor
  • Design: Shielded
  • Size: 0.940" L x 0.940" W (23.88mm x 23.88mm)
  • Inductance: 168 µH
  • Maximum Seated Height: 0.400" (10.16mm)
  • DC Resistance: 180mOhm
  • Temperature Range: -40°C ~ 130°C
  • RoHS Compliant: Yes
