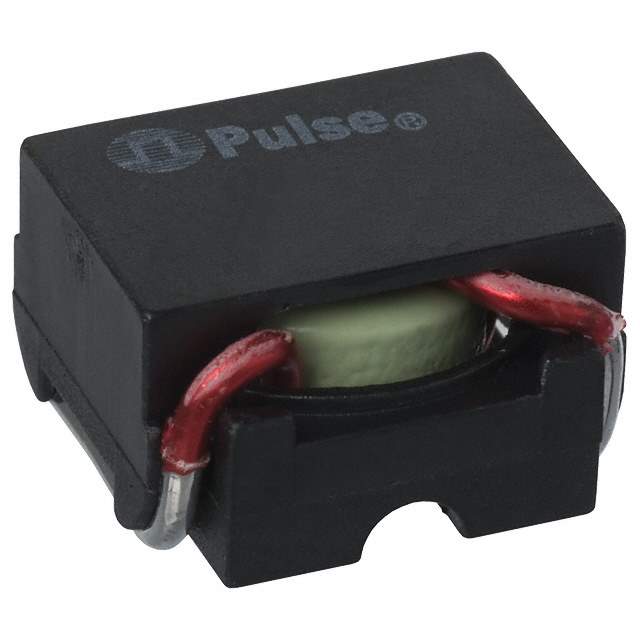

PE-53680NL Real Image
Same model may have multiple batches, images only for reference.

PE-53680NL

Part No PE-53680NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 1.32UH 11.5A 4 MOHM
Datasheet
PE-53680NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Bulk
Status Active
Type Toroidal
Inductance 1.32μH
Current Rating 11.5A
DC Resistance (DCR) 4 mOhm Max
Temperature Range - Operating -40°C to 130°C
Mounting SMD (SMT)
Height - Seated (Max) 0.370" (9.40mm)
Win Source Part Number 132759-PE-53680NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-53680NL CAD Model

Description

The Pulse Electronics Corporation PE-53680NL is a toroidal inductor electronic component.

  • Win Source Part Number: 132759-PE-53680NL
  • Packaging: Bulk
  • Mounting: SMD (SMT)
  • Current Rating: 11.5A
  • Inductance: 1.32μH
  • Height: 0.370" (9.40mm)
  • Tolerance: Not specified
  • Frequency - Self-Resonant: Not specified
  • DC Resistance (DCR): 4 mOhm Max
  • Temperature Range: -40°C to 130°C
  • Supply and Demand Status: Limited
