Same model may have multiple batches, images only for reference.

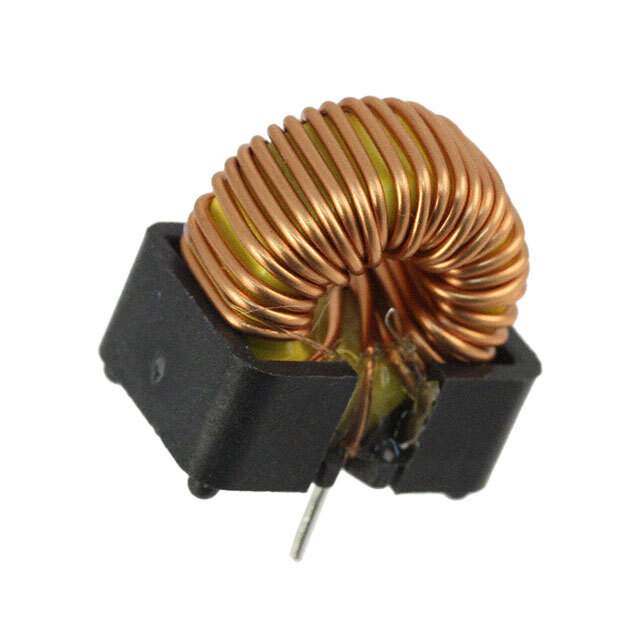

PE-53112NL Real Image
Same model may have multiple batches, images only for reference.

PE-53112NL

Part No PE-53112NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 47UH 3A 50 MOHM TH / 47 µH Unshielded Toroidal Inductor 3 A 50mOhm Max Radial, Vertical (Open)
Datasheet
PE-53112NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Pulse Electronics
Packaging Tube
Type Toroidal
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Shielding Unshielded
DC Resistance (DCR) 50mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Mounting Through Hole
Case / Package Radial, Vertical (Open)
Size / Dimension 0.650" L x 0.450" W (16.51mm x 11.43mm)
Height - Seated (Max) 0.700" (17.78mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number PE-53112NL-ND,PE53112NL,553-1560-5
Standard Package 30
Win Source Part Number 1327519-PE-53112NL
Ultra Librarian 3D Model Ultra Librarian PE-53112NL CAD Model

Description

The PE-53112NL is an inductor, coil or choke manufactured by Pulse Electronics.

  • Type: Toroidal
  • Shielding: Unshielded
  • Size or Dimension: 0.650" L x 0.450" W (16.51mm x 11.43mm)
  • Inductance: 47 µH
  • Height: 0.700" (17.78mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 50mOhm Max
  • Temperature Range: -40°C ~ 130°C
  • Case/Package: Radial, Vertical (open)
  • Standard Package: 30
  • RoHS Compliant: Yes
  • REACH: Unaffected
  • MSL Level: 1 (unlimited)
