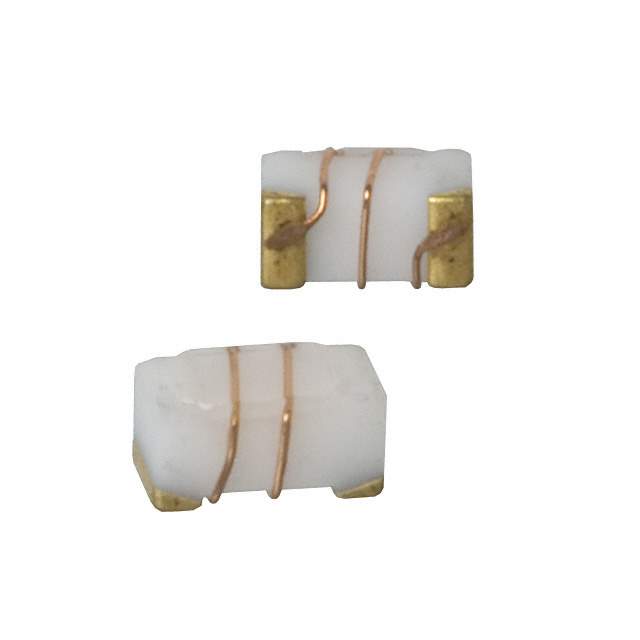

PE-0603CD101KTT Real Image
Same model may have multiple batches, images only for reference.

PE-0603CD101KTT

Part No PE-0603CD101KTT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 98.5NH 400MA 580 MOHM / 98.5 nH Unshielded Drum Core, Wirewound Inductor 400 mA 580mOhm Max 0603 (1608 Metric)
Datasheet
PE-0603CD101KTT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Pulse Electronics
Packaging Reel - TR
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 98.5 nH
Tolerance ±10%
Current Rating (Amps) 400 mA
Shielding Unshielded
DC Resistance (DCR) 580mOhm Max
Q @ Freq 34 @ 150MHz
Frequency - Self Resonant 1.4GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 150 MHz
Mounting Surface Mount
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.071" L x 0.049" W (1.80mm x 1.24mm)
Height - Seated (Max) 0.040" (1.02mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 2,000
Win Source Part Number 1330899-PE-0603CD101KTT
Ultra Librarian 3D Model Ultra Librarian PE-0603CD101KTT CAD Model

Description

The PE-0603CD101KTT is a fixed inductor that comes in a 0603 (1608 Metric) package.

  • Manufacturer:
  • Product Name: PE-0603CD101KTT
  • Package: 0603 (1608 Metric)
  • Category: Inductors, Coils, Chokes>Fixed Inductors
  • Inductance: 98.5 nH
  • DC Resistance (DCR): 580mOhm Max
  • Q @ Freq: 34 @ 150MHz
  • Frequency - Self Resonant: 1.4GHz
  • Package/Case: Reel - TR
  • Mounting Type: Surface Mount
