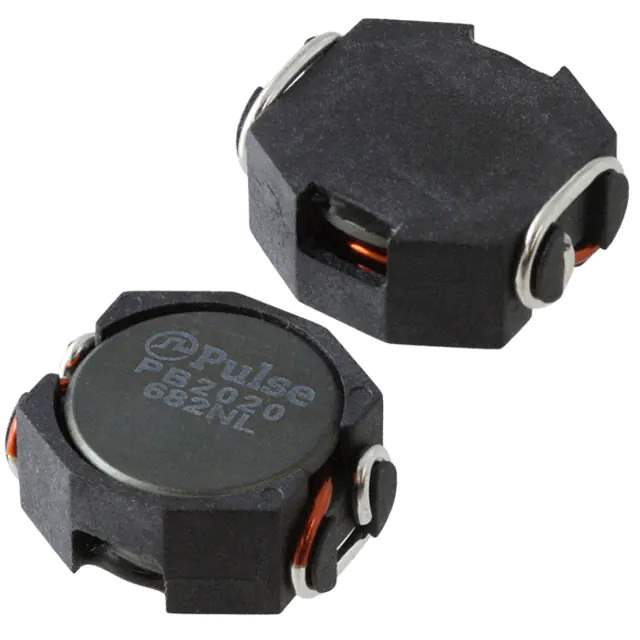

PB2020.682NL Real Image
Same model may have multiple batches, images only for reference.

PB2020.682NL

Part No PB2020.682NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 6.8UH 13.6A 6.5MOHM SM
Datasheet
PB2020.682NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PB2020NL
Package Tube
Product Status Active
Type Wirewound
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 13.6 A
Current - Saturation (Isat) 25A
Shielding Unshielded
DC Resistance (DCR) 6.5mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.940" L x 0.820" W (23.87mm x 20.83mm)
Height - Seated (Max) 0.400" (10.16mm)
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1041737-PB2020.682NL
Ultra Librarian 3D Model Ultra Librarian PB2020.682NL CAD Model

Description

The 1041737-PB2020.682NL is a fixed inductor used in electronic devices.

  • Category: Inductors, Coils, Chokes - Fixed Inductors
  • Series: PB2020NL
  • Type: Wirewound, Unshielded
  • Package: Tube
  • Size: 0.940" L x 0.820" W (23.87mm x 20.83mm)
  • Inductance: 6.8μH
  • Height: 0.400" (10.16mm)
  • Mounting: Surface Mount
  • DC Resistance: 6.5mOhm Max
  • Temperature Range: -40°C to 130°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Status: Active
  • Current Rating: 13.6A
  • Current Saturation: 25A
