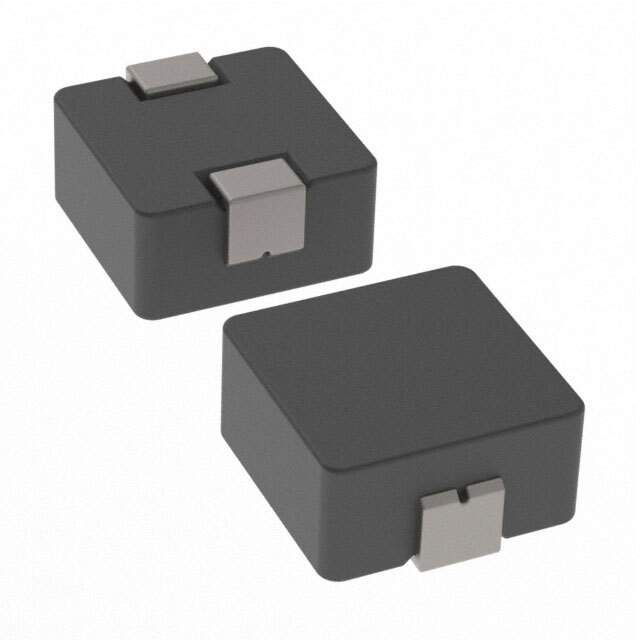

PA4343.682ANLT Real Image
Same model may have multiple batches, images only for reference.

PA4343.682ANLT

Part No PA4343.682ANLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 6.8UH 14A 11.3MOHM SMD / 6.8 µH Shielded Molded Inductor 14 A 11.3mOhm Max Nonstandard
Datasheet
PA4343.682ANLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Pulse Electronics
Packaging Reel - TR
Type Molded
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 14 A
Current - Saturation (Isat) 18A
Shielding Shielded
DC Resistance (DCR) 11.3mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.531" L x 0.496" W (13.50mm x 12.60mm)
Height - Seated (Max) 0.256" (6.50mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 553-4027-1,553-4027-2,553-4027-6
Standard Package 500
Win Source Part Number 1327678-PA4343.682ANLT
Ultra Librarian 3D Model Ultra Librarian PA4343.682ANLT CAD Model

Description

This electronic component is a fixed inductor that belongs to the Inductors, Coils, Chokes category.

  • Shielding: Yes
  • Size Dimension: 0.531" L x 0.496" W (13.50mm x 12.60mm)
  • Inductance: 6.8 µH
  • Current Rating: 14 A
  • Mounting Type: Surface Mount
  • Tolerance: ±20%
  • AEC-Q200 Rated: Yes
  • RoHS Compliant: Yes
