Same model may have multiple batches, images only for reference.

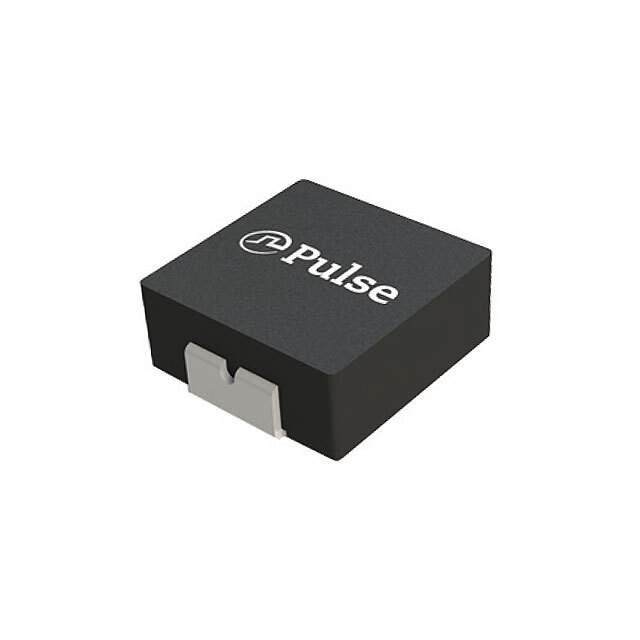

PA4341.101NLT Real Image
Same model may have multiple batches, images only for reference.

PA4341.101NLT

Part No PA4341.101NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 100NH 32.5A 1.7MOHM SM / 100 nH Shielded Molded Inductor 32.5 A 1.7mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PA4341.XXXNLT
Package Tape & Reel
Type Molded
Inductance 100 nH
Tolerance ±30%
Current Rating (Amps) 32.5 A
Current - Saturation (Isat) 60A
Shielding Shielded
DC Resistance (DCR) 1.7mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.299" L x 0.272" W (7.60mm x 6.90mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 553-2991-6,553-2991-2,553-2991-1,-PA4341.101NLT
Standard Package 1,000
Win Source Part Number 1140461-PA4341.101NLT
Ultra Librarian 3D Model Ultra Librarian PA4341.101NLT CAD Model

Description

Pulse Electronics Power brings you the PA4341.101NLT fixed inductor, which is part of the PA4341.XXXNLT series.

  • Type: Molded, Shielded
  • Inductance: 100nH
  • Maximum Seated Height: 0.118 inches (3.00mm)
  • Tolerance: ±30%
  • Ratings: AEC-Q200 (Automotive)
  • DC Resistance (DCR): 1.7mOhm max
  • Current Rating (Amps): 32.5A
  • Inductance Frequency-Test: 100 kHz
  • Package: Nonstandard
  • Standard Package: 1,000 units
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.299 inches L x 0.272 inches W (7.60mm x 6.90mm)
