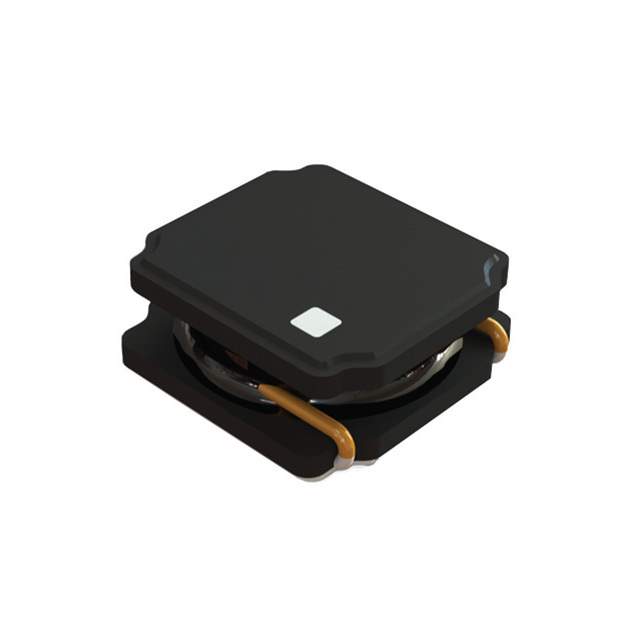

Same model may have multiple batches, images only for reference.

PA4331.102NLT

Name: PA4331.102NLT
Brand: Pulse
SKU: 969042
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PA4331.102NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 1UH 2.7A 54 MOHM SMD / 1 µH Shielded Drum Core, Wirewound Inductor 2.7 A 54mOhm Max Nonstandard
Datasheet	PA4331.102NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PA4331.XXXNLT
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Iron
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	2.7 A
Current - Saturation (Isat)	4.2A
Shielding	Shielded
DC Resistance (DCR)	54mOhm Max
Frequency - Self Resonant	51MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.126" L x 0.126" W (3.20mm x 3.20mm)
Height - Seated (Max)	0.047" (1.20mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	553-3281-2,553-3281-1,-PA4331.102NLT,553-3281-6
Standard Package	2,000
Win Source Part Number	969042-PA4331.102NLT
Ultra Librarian 3D Model	Ultra Librarian PA4331.102NLT CAD Model

Alternative Products

Description

The PA4331.102NLT is a fixed inductor that belongs to the PA4331.XXXNLT series from Pulse Electronics Power.

Series: PA4331.XXXNLT
Type: Drum Core, Wirewound
Shielding: Shielded
Packaging: Tape & Reel
Inductance: 1 μH
Tolerance: ±20%
DC Resistance (DCR): 54mOhm Max
Current Rating: 2.7 A
Mounting Type: SMD (SMT)
Temperature Range: -40°C to 125°C
