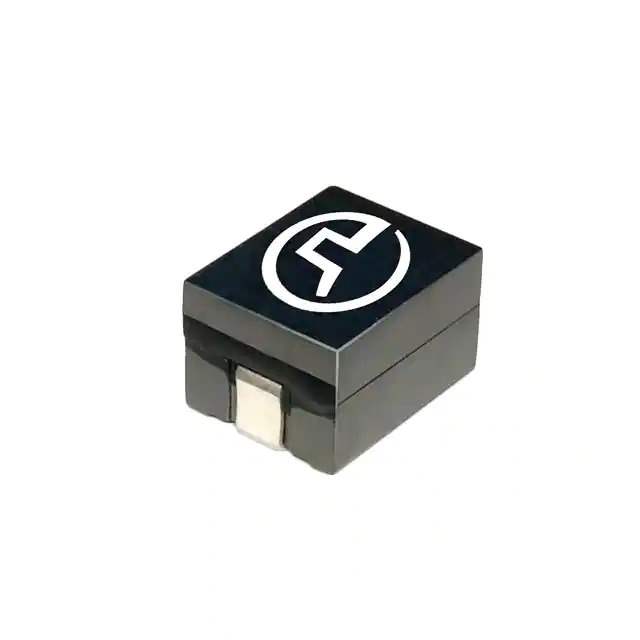

Same model may have multiple batches, images only for reference.

PA2202.181NL

Name: PA2202.181NL
Brand: Pulse
SKU: 888511
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA2202.181NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 180NH 36A 0.48MOHM SMD / 180 nH Unshielded Inductor 36 A 0.48mOhm Nonstandard
Datasheet	PA2202.181NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse
Series	PA2202.XXXNL
Package	Tray
Product Status	Active
Inductance	180 nH
Tolerance	±15%
Current Rating (Amps)	36 A
Current - Saturation (Isat)	64A
Shielding	Unshielded
DC Resistance (DCR)	0.48mOhm
Temperature Range - Operating	-40°C ~ 130°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.476" L x 0.394" W (12.10mm x 10.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Standard Package	75 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	888511-PA2202.181NL
Ultra Librarian 3D Model	Ultra Librarian PA2202.181NL CAD Model

Alternative Products

Description

The PA2202.181NL is a fixed inductor from the PA2202.XXXNL series by Pulse.

Inductor Type: Unshielded
Package: Tray
Size: 0.476" L x 0.394" W (12.10mm x 10.00mm)
Height: 0.236" (6.00mm)
Mounting Type: Surface Mount
Inductance: 180 nH
DC Resistance (DCR): 0.48mOhm
Operating Temperature: -40°C to 130°C
Current Rating: 36 A
Tolerance: ±15%
Product Status: Active
