Same model may have multiple batches, images only for reference.

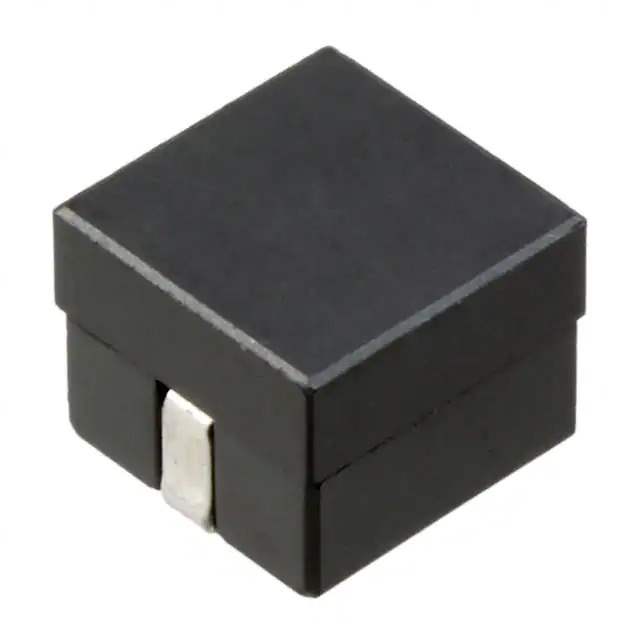

PA0512.151NL Real Image
Same model may have multiple batches, images only for reference.

PA0512.151NL

Part No PA0512.151NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 150NH 24A 0.32MOHM SMD / 150 nH Shielded Inductor 24 A 0.32mOhm Nonstandard
Datasheet
PA0512.151NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PA0512NL
Package Tray
Product Status Obsolete
Inductance 150 nH
Tolerance ±20%
Current Rating (Amps) 24 A
Current - Saturation (Isat) 30A
Shielding Shielded
DC Resistance (DCR) 0.32mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.195" (4.96mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 929932-PA0512.151NL
Ultra Librarian 3D Model Ultra Librarian PA0512.151NL CAD Model

Description

The 857690 is a fixed inductor from the PA0512NL series by Pulse.

  • Series: PA0512NL
  • Size: 0.276" L x 0.276" W (7.00mm x 7.00mm)
  • Seated Height: 0.195" (4.96mm)
  • Inductance: 150 nH
  • Tolerance: ±20%
  • Shielding: Shielded
  • DC Resistance (DCR): 0.32mOhm
  • Current Rating: 24 A
  • Operating Temperature Range: -40°C to 130°C
  • Mounting: Surface Mountable
  • Package: Nonstandard
