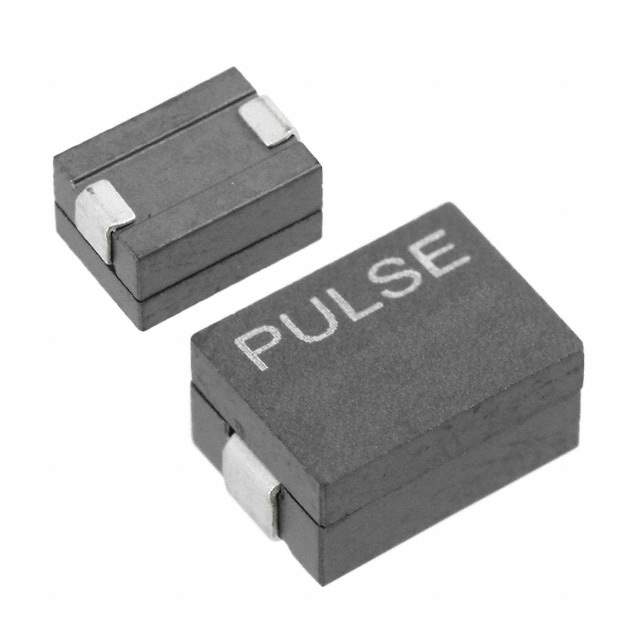

PA0511.221NLT Real Image
Same model may have multiple batches, images only for reference.

PA0511.221NLT

Part No PA0511.221NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 220NH 25A 0.39 MOHM
Datasheet
PA0511.221NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Inductance 220nH
Tolerance ±20%
Current Rating 25A
Current - Saturation 33A
DC Resistance (DCR) 0.39 mOhm
Temperature Range - Operating -40°C to 130°C
Mounting SMD (SMT)
Height - Seated (Max) 0.195" (4.96mm)
Win Source Part Number 026366-PA0511.221NLT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PA0511.221NLT CAD Model

Description

The Pulse Electronics Corporation 026366-PA0511.221NLT is a surface mount inductor with an inductance of 220nH and a current rating of 25A.

  • DC Resistance: 0.39 mOhm
  • Current Saturation: 33A
  • Tolerance: ±20%
  • Height: 0.195 inches
  • Operating Temperature: -40°C to 130°C
  • Package: reel
  • Commonly used for: filtering and energy storage purposes
