Same model may have multiple batches, images only for reference.

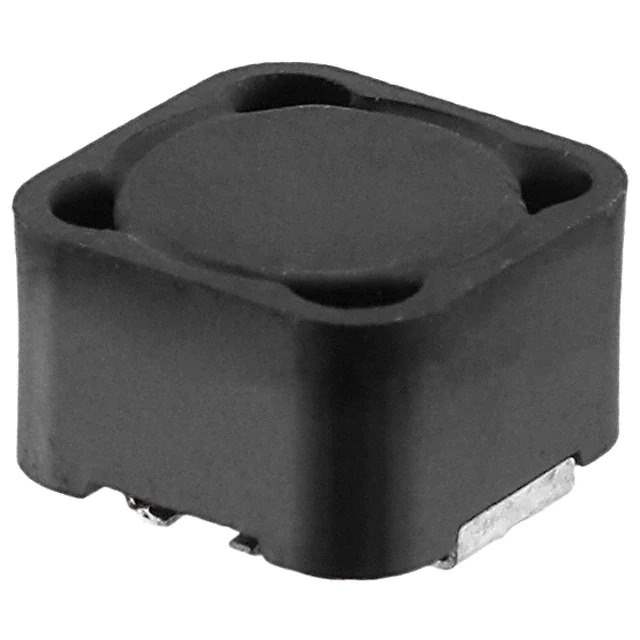

P1172.473NLT Real Image
Same model may have multiple batches, images only for reference.

P1172.473NLT

Part No P1172.473NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 47UH 2.6A 89 MOHM SMD / 47 μH Shielded Wirewound Inductor 2.6 A 89mOhm Max Nonstandard
Datasheet
P1172.473NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series P1172NL
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 2.6 A
Current - Saturation (Isat) 2.6A
Shielding Shielded
DC Resistance (DCR) 89mOhm Max
Frequency - Self Resonant 7MHz
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max) 0.315" (8.00mm)
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 929796-P1172.473NLT
Ultra Librarian 3D Model Ultra Librarian P1172.473NLT CAD Model

Description

The 929796-P1172.473NLT is a wirewound fixed inductor from the P1172NL series by Pulse.

  • Series: P1172NL
  • Size: 0.482" L x 0.482" W (12.24mm x 12.24mm)
  • Inductance: 47 µH
  • Seated Height: 0.315" (8.00mm)
  • DC Resistance (DCR): 89mOhm
  • Current Rating: 2.6 A
  • Saturation Current: 2.6A
  • Operating Temperature: -40°C to 130°C
  • Package: nonstandard
  • Packaging: tape & reel
  • Type: shielded fixed inductor
