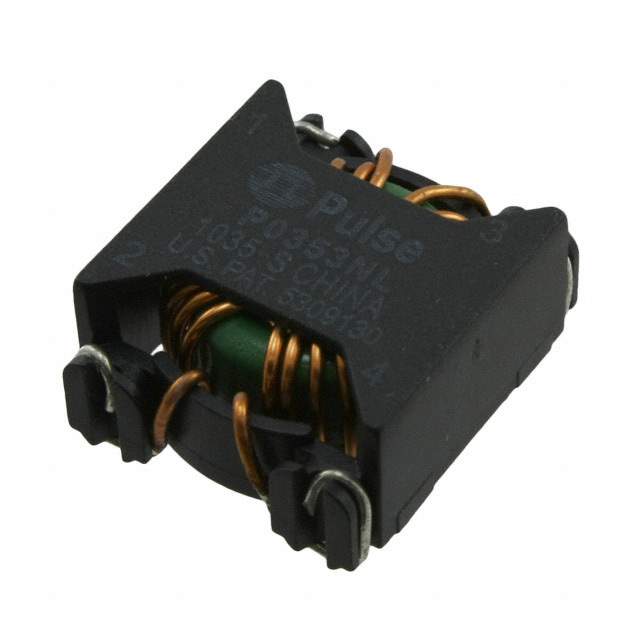

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Pulse Electronics Power
Packaging Tube
Filter Type Power Line
Number of Lines 2
Current Rating (Maximum) 5.6A
DC Resistance (DCR) (Maximum) 21mOhm
Temperature Range - Operating -40°C ~ 120°C
Mounting Style SMD
Dimension 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Maximum) 0.390" (9.91mm)
Manufacturer Package Horizontal, 4 PC Pad
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810784-P0353NL
Ultra Librarian 3D Model Ultra Librarian P0353NL CAD Model

Description

The Pulse Electronics Power 810784-P0353NL is a power line filter designed by Pulse Electronics.

  • Maximum Current Rating: 5.6A
  • DC Resistance (DCR): 21mOhm
  • Voltage Rating: AC and DC
  • Operating Temperature Range: -40°C to 120°C
  • Packaging: Tube
  • Dimension: 0.770" L x 0.670" W (19.56mm x 17.02mm)
  • Manufacturer Package: Horizontal, 4 PC pad
  • Height (Maximum): 0.390" (9.91mm)
  • Manufacturer Pack Quantity: 30
  • MSL Level: 1 (Unlimited)
