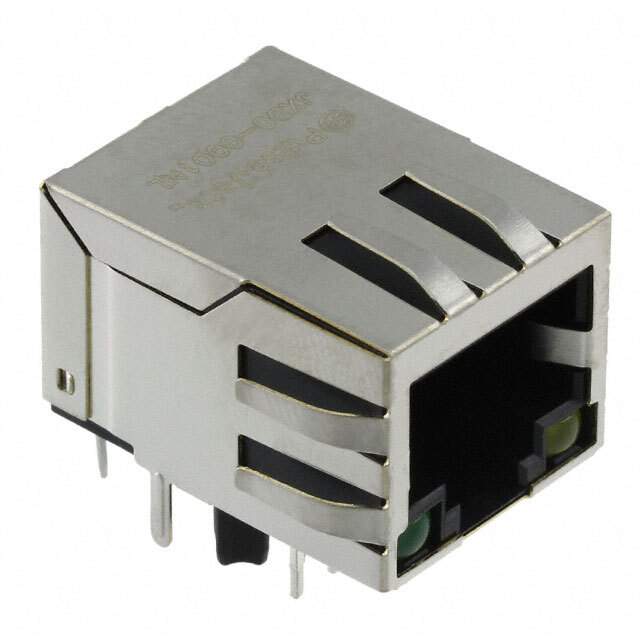

JXD0-0001NL Real Image
Same model may have multiple batches, images only for reference.

JXD0-0001NL

Part No JXD0-0001NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
JXD0-0001NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.537" (13.65mm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -JXD0-0001NL,JXD0-0001NL-ND,553-3264
Standard Package 50
Win Source Part Number 1333907-JXD0-0001NL
Ultra Librarian 3D Model Ultra Librarian JXD0-0001NL CAD Model

Description

The Pulse Electronics 1333907-JXD0-0001NL is a shielded RJ45 connector with EMI finger, designed for 10/100/1000 Base-T and AutoMDIX applications.

  • Orientation: 90-degree angle (right)
  • Tab Direction: Down
  • Mounting: Through-hole
  • LED Color: Green-yellow
  • Cores per Jack: 8
  • Housing Material: Thermoplastic
  • Contact Material: Phosphor bronze
  • Shield Material: Brass
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Height Above Board: 0.537" (13.65mm)
  • Ports: One
  • Packaging: Tray
  • Standard Package: 50
  • Operating Temperature Range: -40°C to 85°C
  • Compliance: RoHS compliant
  • ECCN: EAR99
