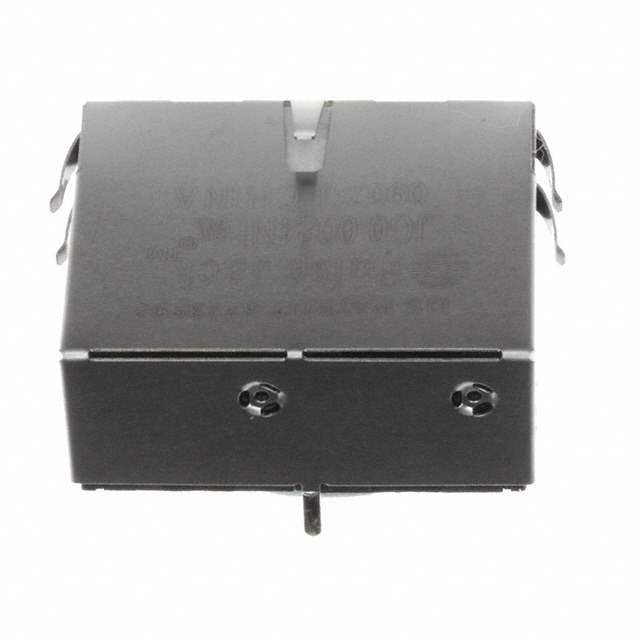

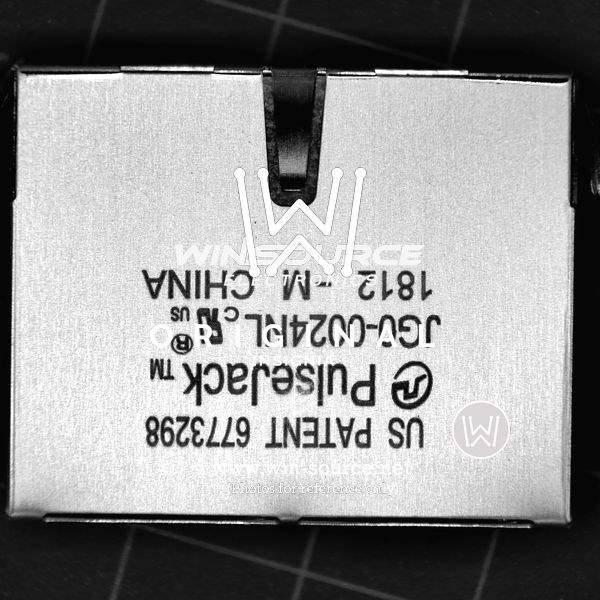

JG0-0024NL

Name: JG0-0024NL
Brand: Pulse
SKU: 165994
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	JG0-0024NL
Manufacturer	Pulse
Catalog	Modular Connectors
Description	CONN MAGJACK 2PORT 1000 BASE-T
Datasheet	JG0-0024NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Pulse Electronics Corporation
Packaging	Tray
Status	Active
Connector Type	RJ45
Number of Ports	2
Number of Rows	1
Applications	10/100/1000 Base-T, AutoMDIX
Mounting	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.545" (13.84mm)
LED Color	Green - Green
Number of Cores per Jack	8
Features	Board Guide
Contact Finish	Gold
Temperature Range - Operating	0°C to 70°C
Contact Finish Thickness	30μin (0.76μm)
Shield Material	Brass
Housing Material	Thermoplastic
Win Source Part Number	205737-JG0-0024NL
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian JG0-0024NL CAD Model

Alternative Products

Description

The Pulse Electronics Corporation RJ45 connector with board guide is a through-hole connector with a 90° angle (right) orientation.

Ports: Two
Cores per Jack: Eight
Applications: 10/100/1000 Base-T and AutoMDIX
Height above Board: 0.545" (13.84mm)
Housing Material: Thermoplastic
Contact Finish: Gold
Contact Finish Thickness: 30μin (0.76μm)
Shield Material: Brass
LED Color: Green-Green
Mounting: Solder termination
Category: Connectors, Interconnects
Popularity: Medium
Supply and Demand Status: Balanced
